Removal [11/2018 - ]: Procedure
- REMOVE HOOD INSULATOR (w/ Hood Insulator)
Refer to PROCEDURE - Step 1 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 1 [10/2019 - ]
- REMOVE WASHER NOZZLE SUB-ASSEMBLY

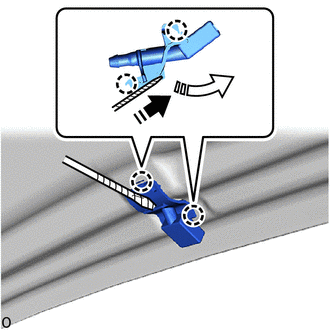

- Using a screwdriver with its tip wrapped with protective tape, detach the claw as indicated by the arrows, in the order shown in the illustration to separate the washer nozzle sub-assembly.
Protective Tape Remove in this Direction (1) Remove in this Direction (2) NOTE:Be careful not to damage the windshield glass.
- Disconnect the washer hose to remove the washer nozzle sub-assembly.NOTE:
Washer nozzle sub-assemblies cannot be reused.
- Using a screwdriver with its tip wrapped with protective tape, detach the claw as indicated by the arrows, in the order shown in the illustration to separate the washer nozzle sub-assembly.
