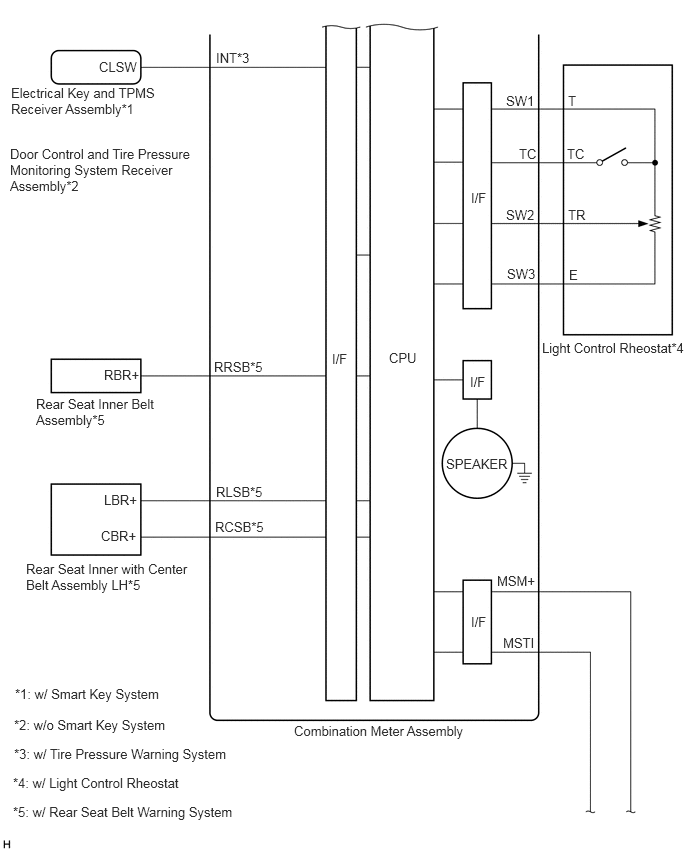

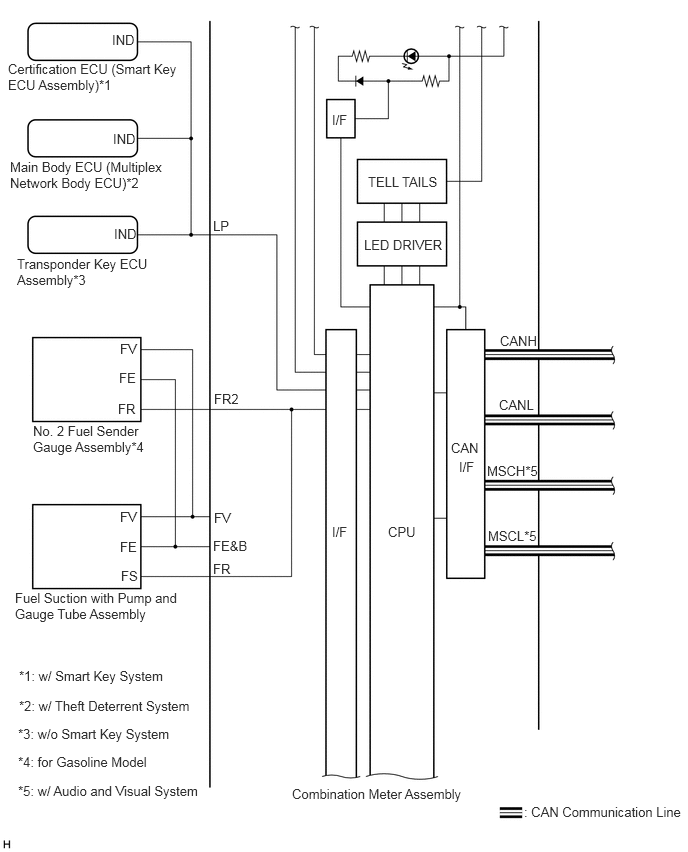

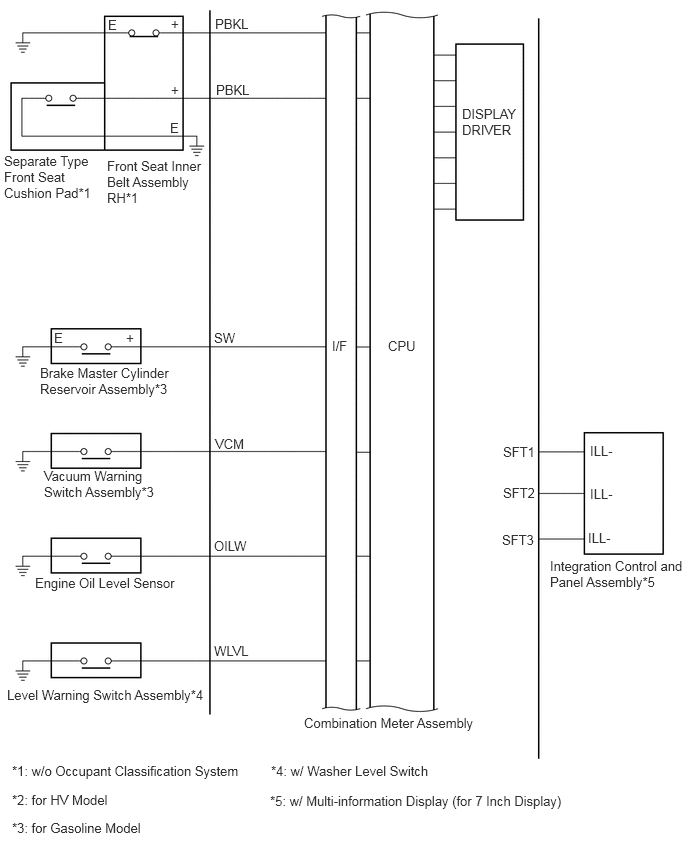

System Diagram [11/2018 - 10/2019]
HINT:
Inspect the communication function by CAN communication system.
- for HV Model:
Refer to SYSTEM DIAGRAM [11/2018 - 02/2019]
, or refer to SYSTEM DIAGRAM [02/2019 - 06/2020]
- for Gasoline Model:
Refer to SYSTEM DIAGRAM [11/2018 - 08/2020]
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

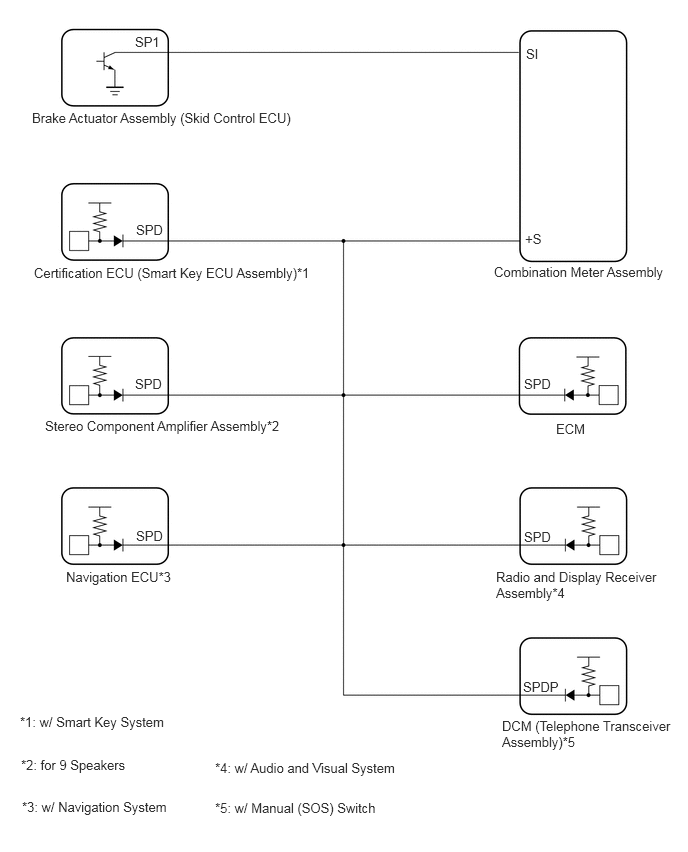

- Speed Signal Circuit
for Gasoline Model:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

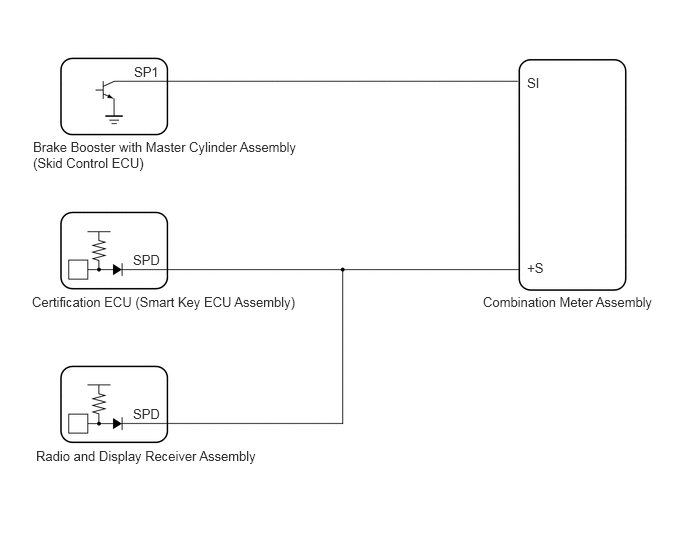

for HV Model:
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Turn Signal Light Circuit (w/ Headlight ECU)
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Turn Signal Light Circuit (w/o Headlight ECU)
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Illumination Circuit
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
