Removal [11/2018 - ]: Procedure

  1. REMOVE ACCELERATOR PEDAL ASSEMBLY
    1. for A25A-FXS:

      Refer to REMOVAL [11/2018 - ]

    2. for A25A-FKS:

      Refer to REMOVAL [11/2018 - ]

  2. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
    1. Detach the clamp.
      GTY933062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Remove the screw.
    3. Detach the guide.
    4. Detach the guide.

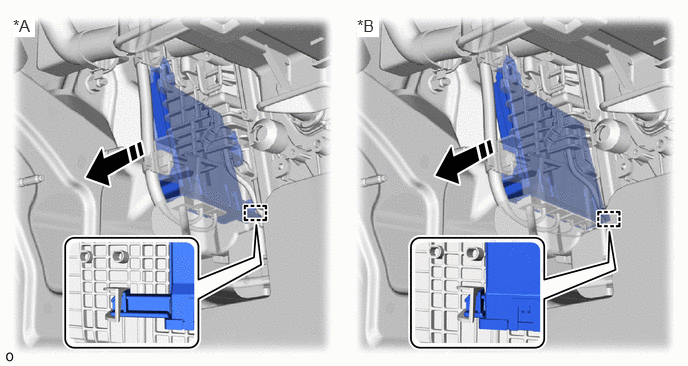

      GTY890594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A *B for Type B
      Remove in this Direction - -
    5. Pull out the air conditioning amplifier assembly as shown in the illustration.
    6. Disconnect each connector and remove the air conditioning amplifier assembly.
      GTY939456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A
      *B for Type B
