Installation [11/2018 - ]: Procedure

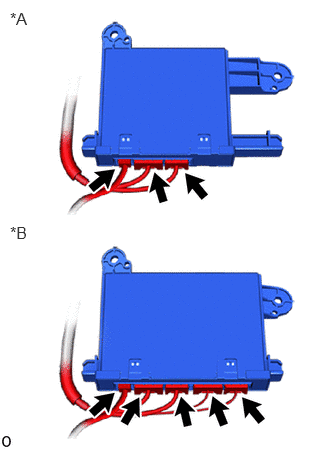

1. Connect each connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for Type A
   *B	for Type B

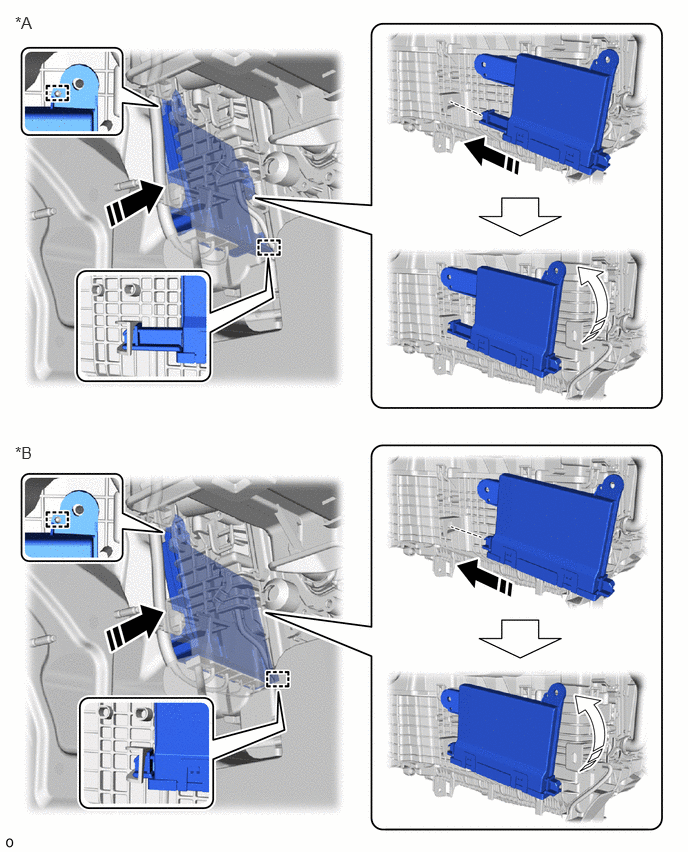

2. Insert the air conditioning amplifier assembly into the guide as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for Type A	*B	for Type B
   	Insert in this Direction		Rotate in this Direction

3. Rotate, and then attach to the guide as shown in the illustration.

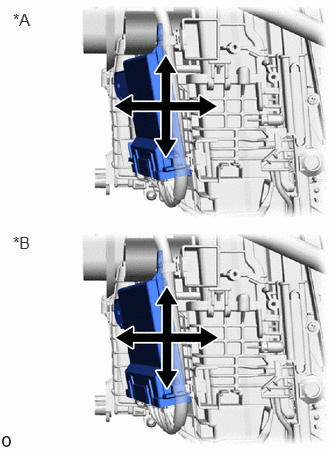

4. Move the air conditioning amplifier assembly in each direction shown in the illustration to check that the guide is securely engaged.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for Type A
   *B	for Type B

5. Install the air conditioning amplifier assembly with the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Attach the clamp.

1. for A25A-FXS:

   Refer to REMOVAL [11/2018 - ]

2. for A25A-FKS:

   Refer to INSTALLATION [11/2018 - ]

Refer to REGISTRATION [11/2018 - 10/2019] , or refer to REGISTRATION [10/2019 - 12/2021] , or refer to REGISTRATION [12/2021 - 10/2022] , or refer to REGISTRATION [10/2022 - 10/2023] , or refer to REGISTRATION [10/2023 - ]
