System Diagram [12/2021 - ]

WARNING: This page is about a different variant/trim than selected.

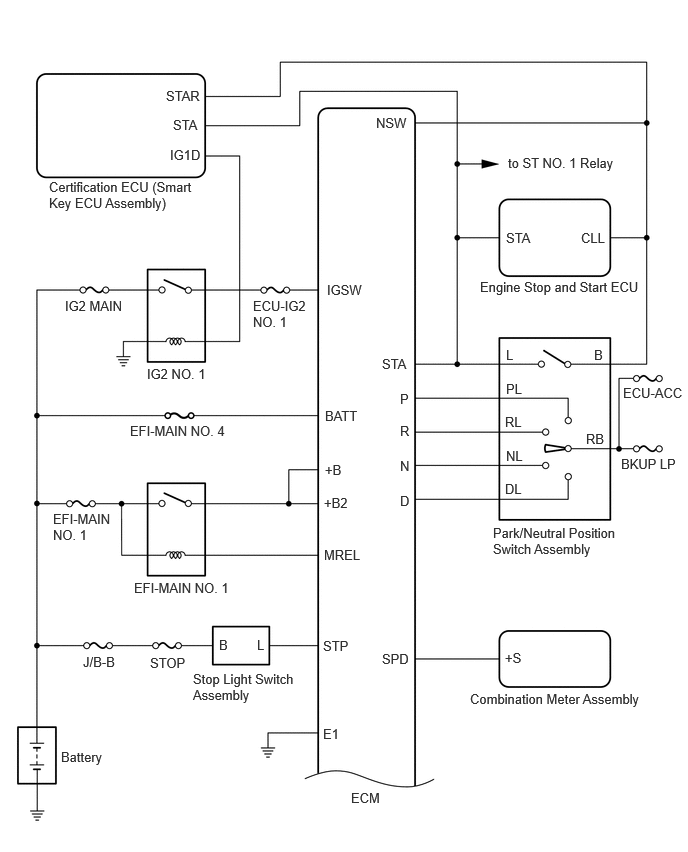

w/ Stop and Start System:

GTY1116095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Stop and Start System:

GTY874027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Stop and Start System:

GTY933123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1116277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY743929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
