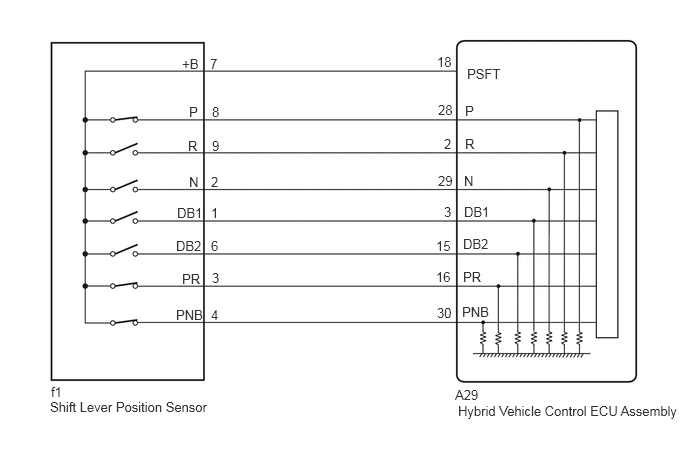

DTC P0705-62: Transmission Range Sensor "A" Circuit (PRNDL Input) Signal Compare Failure [06/2020 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY881658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
