DTC P0A1B-94: Drive Motor "A" Control Module Unexpected Operation [11/2018 - 08/2020]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

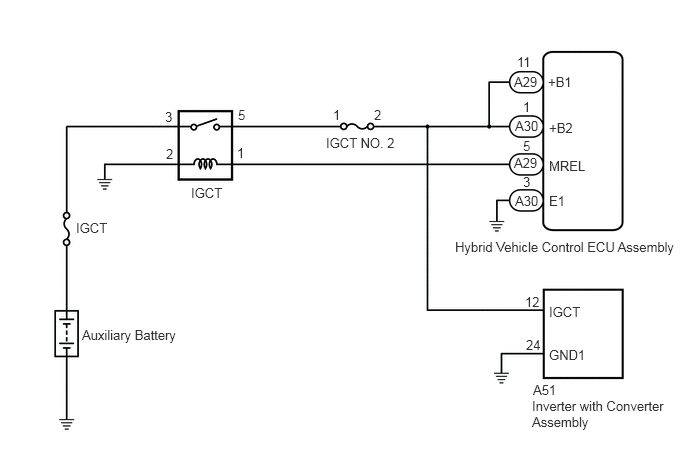

GTY891953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
