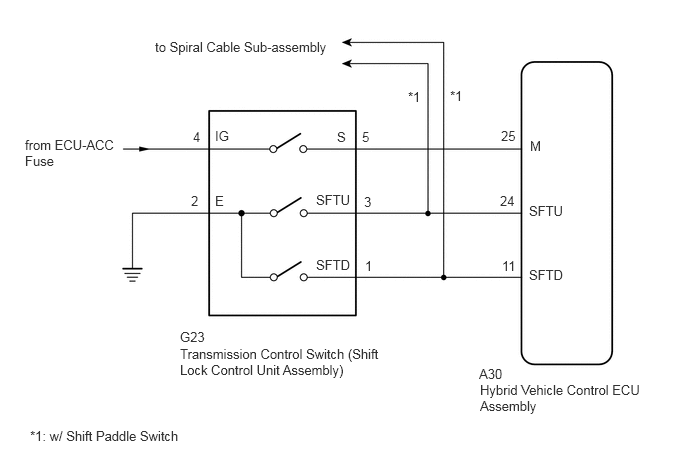

Transmission Control Switch Circuit [11/2018 - 08/2020]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
Refer to the wiring diagram for the shift paddle switch circuit. (w/ Shift paddle switch)
Refer to WIRING DIAGRAM
