Parts Location [11/2018 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

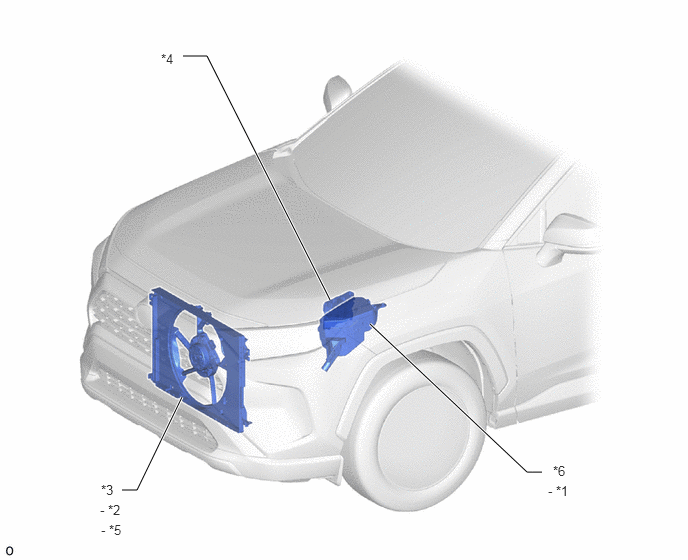

| *1 | EFI-MAIN NO. 1 RELAY | *2 | COOLING FAN ECU |
| *3 | FAN WITH MOTOR ASSEMBLY | *4 | ECM |
| *5 | COOLING FAN MOTOR | *6 | NO. 1 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - DC/DC FUSE - FAN NO. 1 FUSE - EFI-MAIN NO. 1 FUSE - EFI NO. 2 FUSE |
