DTC P0615-12: Starter Relay Circuit Short to Battery [11/2018 - 10/2019]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

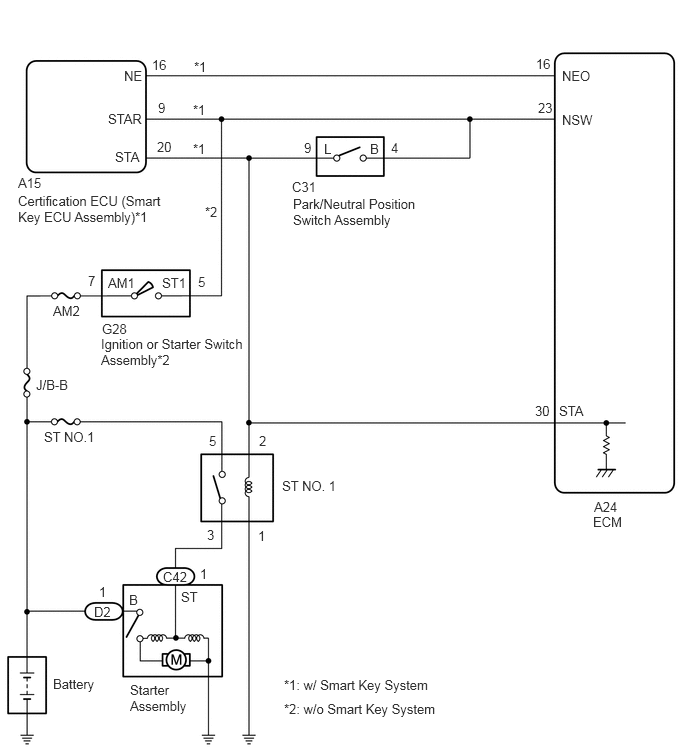

GTY913085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
