DTC P0615-12: Starter Relay Circuit Short to Battery [10/2019 - 08/2020]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

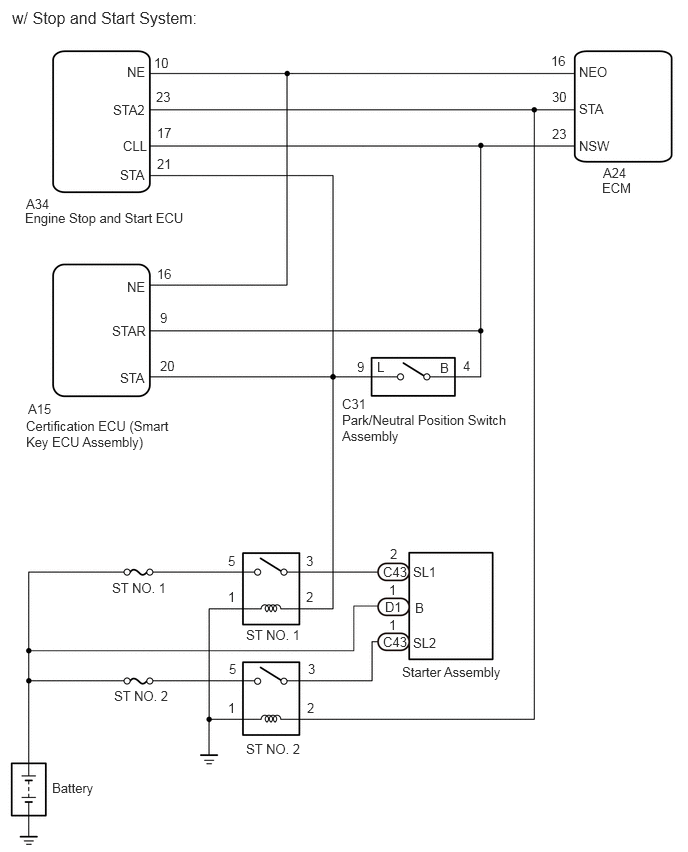

GTY856852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY913086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
