Components [08/2020 - ]
WARNING: This page is about a different variant/trim than selected.

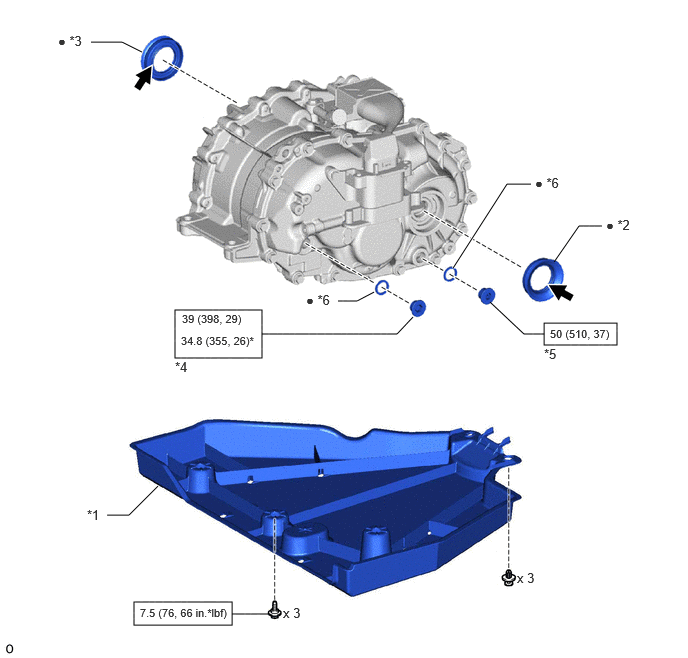

Fig 1: Hybrid Transaxle Side Gear Oil Seal Replacement Components With Torque Specifications [08/2020 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 FLOOR UNDER COVER | *2 | REAR DRIVE SHAFT OIL SEAL LH |
| *3 | REAR DRIVE SHAFT OIL SEAL RH | *4 | FILLER PLUG |
| *5 | DRAIN PLUG | *6 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with union nut wrench | |
| • | Non-reusable part | MP grease |
