DTC P0ABF-28: Hybrid/EV Battery Current Sensor "A" Signal Bias Level Out of Range / Zero Adjustment Failure [06/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK DTC OUTPUT (HV BATTERY, HYBRID CONTROL)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Enter the following menus: Powertrain / HV Battery and Hybrid Control / Trouble Codes.
    4. Check for DTCs.

      Powertrain > HV Battery > Trouble Codes

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result Proceed to
      "P0ABF-28" only is output, or DTCs except the ones in the table below are also output. A
      DTCs of hybrid battery system in the table below are output. B
      DTCs of hybrid control system in the table below are output. C
      System Relevant DTC
      Hybrid battery system P060A-47 Hybrid/EV Battery Energy Control Module Monitoring Processor Watchdog / Safety MCU Failure
      P060B-49 Hybrid/EV Battery Energy Control Module A/D Processing Internal Electronic Failure
      P0606-87 Hybrid/EV Battery Energy Control Module Processor to Monitoring Processor Missing Message
      P062F-46 Hybrid/EV Battery Energy Control Module EEPROM Calibration / Parameter Memory Failure
      Hybrid control system P0A1F-94 Hybrid/EV Battery Energy Control Module Unexpected Operation
    5. Turn the ignition switch off.

    Result:

    B

    GO TO DTC CHART (HYBRID BATTERY SYSTEM)

    Refer to DIAGNOSTIC TROUBLE CODE CHART [06/2020 - ]

    Result:

    C

    GO TO DTC CHART (HYBRID CONTROL SYSTEM)

    Refer to DIAGNOSTIC TROUBLE CODE CHART [06/2020 - 12/2021] , or refer to DIAGNOSTIC TROUBLE CODE CHART [12/2021 - 11/2024] , or refer to DIAGNOSTIC TROUBLE CODE CHART [11/2024 - ]

    Result:

    A

    See step  2

  2. CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - NO. 1 HV SUPPLY STACK SUB-ASSEMBLY)

    Refer to PROCEDURE - Step 10

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    See step  10

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (NO. 2 HV SUPPLY STACK SUB-ASSEMBLY - HV BATTERY JUNCTION BLOCK ASSEMBLY)

    Refer to PROCEDURE - Step 9

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    REPLACE NO. 2 HV SUPPLY STACK SUB-ASSEMBLY

    Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - HV BATTERY JUNCTION BLOCK ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Remove the No. 1 HV battery hose.

      Refer to PROCEDURE - Step 23 [06/2020 - 08/2020] , or refer to PROCEDURE - Step 23 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 23 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 23 [10/2023 - ]

    3. Disconnect the z26 battery ECU assembly connector.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

      GTY975401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the z25 battery current sensor connector from the HV battery junction block assembly.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

      GTY975705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Measure the resistance according to the value(s) in the tables below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      z26-24 (IB1) - z25-2 (IB1) Ignition switch off Below 1 Ω
      z26-23 (GIB) - z25-3 (GIB) Ignition switch off Below 1 Ω
      z26-12 (IB0) - z25-4 (IB0) Ignition switch off Below 1 Ω
      z26-36 (VIB) - z25-1 (VIB) Ignition switch off Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection Condition Specified Condition
      z26-24 (IB1) or z25-2 (IB1) - Body ground and other terminals Ignition switch off 10 kΩ or higher
      z26-23 (GIB) or z25-3 (GIB) - Body ground and other terminals Ignition switch off 10 kΩ or higher
      z26-12 (IB0) or z25-4 (IB0) - Body ground and other terminals Ignition switch off 10 kΩ or higher
      z26-36 (VIB) or z25-1 (VIB) - Body ground and other terminals Ignition switch off 10 kΩ or higher

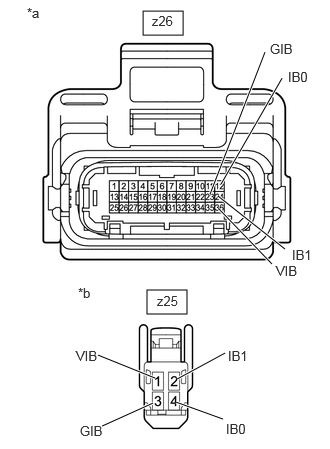

      GTY993732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Battery ECU Assembly)
      *b Front view of wire harness connector
      (to HV Battery Junction Block Assembly (Battery Current Sensor))
    6. Reconnect the z25 battery current sensor connector to the HV battery junction block assembly.
    7. Reconnect the z26 battery ECU assembly connector.
    8. Install the No. 1 HV battery hose.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  5

  5. READ VALUE USING GTS (HYBRID/EV BATTERY CURRENT, HYBRID /EV BATTERY CURRENT SENSOR POWER SUPPLY VOLTAGE)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    Pre-procedure1

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Remove the No. 1 HV battery cover panel RH.

      Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    3. Disconnect the z25 battery current sensor connector.
      GTY975705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the cable to the negative (-) auxiliary battery terminal.
    5. Turn the ignition switch to ON.

      Procedure1

    6. Read the Data List.

      Powertrain > HV Battery > Data List

      Tester Display
      Hybrid/EV Battery Current
      Hybrid/EV Battery Current Sensor Power Supply Voltage

      Standard

      Data List Specified Condition
      Hybrid/EV Battery Current Below -170 A
      Hybrid/EV Battery Current Sensor Power Supply Voltage 4.5 to 5.5 V

      Result

      Result Proceed to
      Within the specified range above A
      Other than above B

      Post-procedure1

    7. Turn the ignition switch off.
    8. Disconnect the cable from the negative (-) auxiliary battery terminal.
    9. Reconnect the z25 battery current sensor connector.

    Result:

    B

    REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    A

    See step  6

  6. REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY

    Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result

    Proceed to
    NEXT

    Result:

    NEXT

    See step  7

  7. SIMULATION TEST
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Enter the following menus: Powertrain / HV Battery / Trouble Codes.
    4. Clear the DTCs and freeze frame data.

      Powertrain > HV Battery > Clear DTCs

    5. Drive the vehicle on urban roads for approximately 10 minutes.
    6. Turn the ignition switch off and wait for 2 minutes or more.
    7. Turn the ignition switch to ON and wait for 10 seconds or more.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  8

  8. CHECK DTC OUTPUT (HV BATTERY)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Enter the following menus: Powertrain / HV Battery / Trouble Codes.
    4. Check for DTCs.

      Powertrain > HV Battery > Trouble Codes

      Result

      Result Proceed to
      DTCs are not output. A
      P0ABF-28 is also output. B
    5. Turn the ignition switch off.

    Result:

    A

    END

    Result:

    B

    REPLACE BATTERY ECU ASSEMBLY

    Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

  9. CHECK HARNESS AND CONNECTOR (NO. 2 HV SUPPLY STACK SUB-ASSEMBLY - HV BATTERY JUNCTION BLOCK ASSEMBLY)
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.

    2. Remove the No. 1 HV battery hose.

      Refer to PROCEDURE - Step 23 [06/2020 - 08/2020] , or refer to PROCEDURE - Step 23 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 23 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 23 [10/2023 - ]

    3. Disconnect the A No. 1 HV supply stack sub-assembly connector.
      NOTE:

      Before disconnecting the connector, check that it is not loose or disconnected.

      GTY975186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check the terminals of the male side of the A No. 1 HV supply stack sub-assembly connector.

      OK

      The terminals are free of foreign matter and not damaged.

      Result

      Proceed to
      OK
      NG
    5. Reconnect the A No. 1 HV supply stack sub-assembly connector.
    6. Install the No. 1 HV battery hose.

    Result:

    OK

    REPLACE NO. 2 HV SUPPLY STACK SUB-ASSEMBLY

    Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    NG

    REPLACE NO. 1 HV SUPPLY STACK SUB-ASSEMBLY

    Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

  10. CHECK HARNESS AND CONNECTOR (NO. 2 HV SUPPLY STACK SUB-ASSEMBLY - HV BATTERY JUNCTION BLOCK ASSEMBLY)

    Refer to PROCEDURE - Step 9

    Result

    Proceed to
    OK
    NG

    Result:

    OK

    REPLACE NO. 1 HV SUPPLY STACK SUB-ASSEMBLY

    Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

    Result:

    NG

    REPLACE NO. 1 HV SUPPLY STACK SUB-ASSEMBLY AND NO. 2 HV SUPPLY STACK SUB-ASSEMBLY

    Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
