DTC U1150-87: Lost Communication with Hybrid Powertrain Control Module (Hybrid/EV Battery Local Bus) Missing Message [06/2020 - ]: Procedure
- CHECK DTC OUTPUT (HV BATTERY)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Enter the following menus: Powertrain / HV Battery / Trouble Codes.
- Check and record any HV battery DTCs and freeze frame data. Check for DTCs.
Powertrain > HV Battery > Trouble Codes
Result
Result Proceed to DTCs related to Hybrid Control are not output. A DTCs related to Hybrid Control are output. B - Turn the ignition switch off.
Result:
B
GO TO DTC CHART (HYBRID CONTROL SYSTEM)
Refer to DIAGNOSTIC TROUBLE CODE CHART [06/2020 - 12/2021] , or refer to DIAGNOSTIC TROUBLE CODE CHART [12/2021 - 11/2024] , or refer to DIAGNOSTIC TROUBLE CODE CHART [11/2024 - ]
Result:
A
See step 2
- CHECK HYBRID VEHICLE CONTROL ECU ASSEMBLY (VOLTAGE)
- Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.

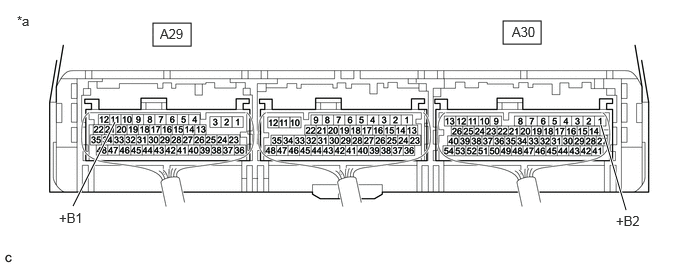

*a Component with harness connected
(to Battery ECU Assembly)- - Standard Voltage
Tester Connection Condition Specified Condition A29-11 (+B1) - Body ground Ignition switch ON 11 to 14 V A30-1 (+B2) - Body ground Ignition switch ON 11 to 14 V - Turn the ignition switch off.
Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY ECU ASSEMBLY POWER SOURCE CIRCUIT)
Result:
OK
See step 3
- CHECK HYBRID VEHICLE CONTROL ECU ASSEMBLY WARNING:
Be sure to wear insulated gloves and protective goggles.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Remove the No. 1 HV battery hose.
Refer to PROCEDURE - Step 23 [06/2020 - 08/2020] , or refer to PROCEDURE - Step 23 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 23 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 23 [10/2023 - ]
- Disconnect the z26 battery ECU assembly connector.NOTE:
- Before disconnecting the connector, check that it is not loose or disconnected.
- Check the terminals of the connector for deformation and corrosion.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

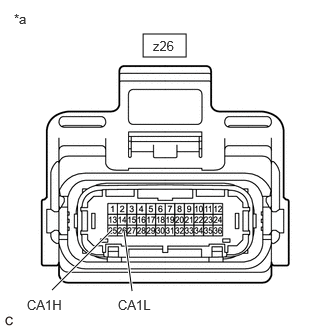

Tester Connection Condition Specified Condition z26-25 (CA1H) - z26-26 (CA1L) Ignition switch off 108 to 132 Ω *a Front view of wire harness connector
(to Battery ECU Assembly) - Reconnect the z26 battery ECU assembly connector.
- Install the No. 1 HV battery hose.
Result
Proceed to OK NG
Result:
OK
REPLACE BATTERY ECU ASSEMBLY
Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Result:
NG
See step 4
- Check that the service plug grip is not installed.
- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY - BATTERY ECU ASSEMBLY) WARNING:
Be sure to wear insulated gloves and protective goggles.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the appropriate service information because this may cause a malfunction.
- Disconnect the A31 hybrid vehicle control ECU assembly connector.NOTE:
Before disconnecting the connector, check that it is not loose or disconnected.
- Remove the No. 1 HV battery hose.
Refer to PROCEDURE - Step 23 [06/2020 - 08/2020] , or refer to PROCEDURE - Step 23 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 23 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 23 [10/2023 - ]
- Disconnect the z26 battery ECU assembly connector.NOTE:
- Before disconnecting the connector, check that it is not loose or disconnected.
- Check the terminals of the connector for deformation and corrosion.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

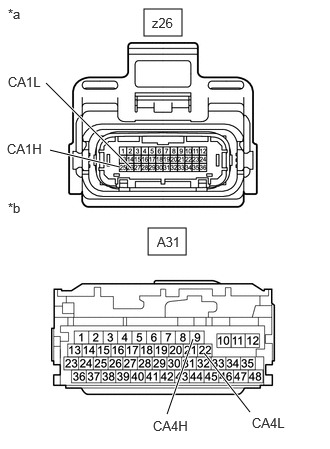

Tester Connection Condition Specified Condition z26-25 (CA1H) - A31-9 (CA4H) Ignition switch off Below 1 Ω z26-26 (CA1L) - A31-22 (CA4L) Ignition switch off Below 1 Ω z26-25 (CA1H) - Other terminals and body ground Ignition switch off 10 kΩ or higher z26-26 (CA1L) - Other terminals and body ground Ignition switch off 10 kΩ or higher *a Front view of wire harness connector
(to Battery ECU Assembly)*b Front view of wire harness connector
(to Hybrid Vehicle Control ECU assembly) - Reconnect the z26 battery ECU assembly connector.
- Install the No. 1 HV battery hose.
- Reconnect the A31 hybrid vehicle control ECU assembly connector.
Result
Proceed to OK NG
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY
Refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Check that the service plug grip is not installed.
