DTC P0ADD-11: Hybrid/EV Battery Negative Contactor Circuit Short to Ground [06/2020 - ]: Procedure
- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY - BODY GROUND)
- Disconnect the A31 hybrid vehicle control ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to Hybrid Vehicle Control ECU Assembly)Standard Resistance
Tester Connection Condition Specified Condition A31-13 (SMRG) - Body ground Ignition switch off 25.0 to 59.0 Ω - Reconnect the A31 hybrid vehicle control ECU assembly connector.
Result
Proceed to OK NG
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY
Refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Result:
NG
See step 2
- CHECK CONNECTOR CONNECTION CONDITION (FLOOR WIRE CONNECTOR)
Refer to PROCEDURE - Step 5
Result
Result Proceed to OK A NG (The connector is not connected securely.) B NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.) C Result:
B
CONNECT SECURELY
Result:
C
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
A
See step 3
- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY - HV BATTERY JUNCTION BLOCK ASSEMBLY) WARNING:
Be sure to wear insulated gloves.
- Check that the service plug grip is not installed.NOTE:
After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the service information because this may cause a malfunction.
- Remove the No. 1 HV battery cover panel RH.
Refer to PROCEDURE - Step 9 [06/2020 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 9 [12/2021 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 9 [10/2023 - ]

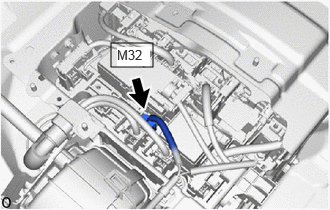

- Disconnect the M32 HV battery junction block assembly connector.
- Disconnect the A31 hybrid vehicle control ECU assembly connector.
- Measure the resistance according to the value(s) in the table below.

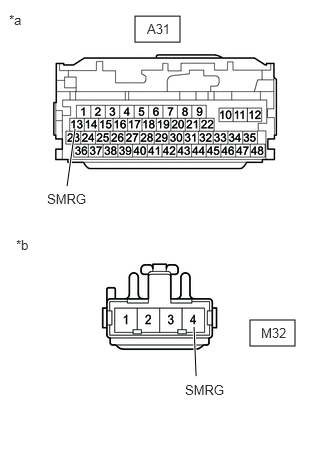

*a Front view of wire harness connector
(to Hybrid Vehicle Control ECU Assembly)*b Front view of wire harness connector
(to HV Battery Junction Block Assembly)Standard Resistance
Tester Connection Condition Specified Condition A31-13 (SMRG) or M32-4 (SMRG) - Body ground and other terminals Ignition switch off 10 kΩ or higher - Reconnect the A31 hybrid vehicle control ECU assembly connector.
- Reconnect the M32 HV battery junction block assembly connector.
- Install the No. 1 HV battery cover panel RH.
Result
Proceed to OK NG
Result:
OK
REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY
Refer to REMOVAL [06/2020 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Check that the service plug grip is not installed.
