Section 139 (Hybrid Control System (Lithium-Ion Battery) - Diagnostic Codes (5 Of 6))
>>
HYBRID CONTROL SYSTEM (for LITHIUM-ION BATTERY)
>>
DTC P2530-12: IG2 Signal Circuit Short to Auxiliary Battery [06/2020 - ]
>>
Wiring Diagram
DTC P2530-12: IG2 Signal Circuit Short to Auxiliary Battery [06/2020 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

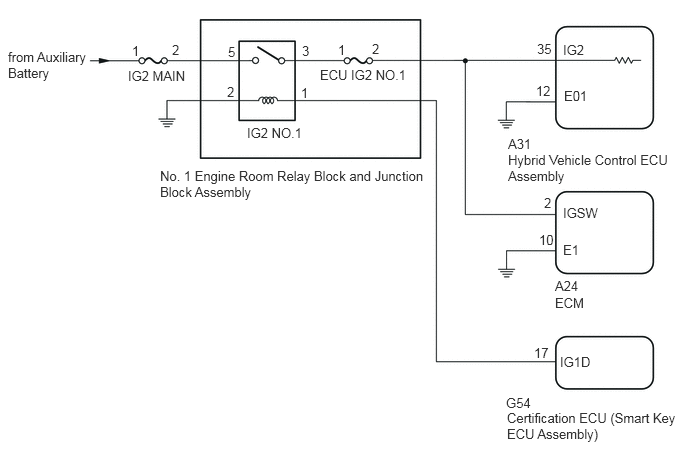

w/ Smart Key System:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

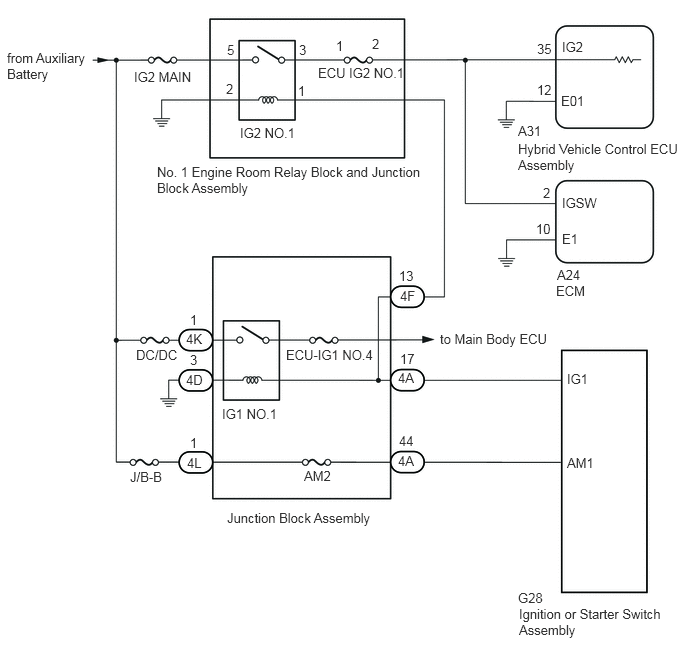

w/o Smart Key System:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
