DTC P1CFA-12: IGB Signal Circuit Short to Auxiliary Battery [06/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU ASSEMBLY CONNECTOR)

    Refer to DTC P0560-14: System Voltage (BATT) Circuit Short to Ground or Open [06/2020 - ]

    Result

    Proceed to
    OK
    NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  2

  2. CHECK CONNECTOR CONNECTION CONDITION (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
    1. Check the connector connection condition of the certification ECU (smart key ECU assembly).

      Refer to ELECTRONIC CIRCUIT INSPECTION PROCEDURE [11/2018 - ]

      OK

      The connector is connected securely and there are no contact problems.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CONNECT SECURELY

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (IGB TERMINAL VOLTAGE)
    1. Turn the ignition switch off.
    2. Measure the voltage according to the value(s) in the table below.

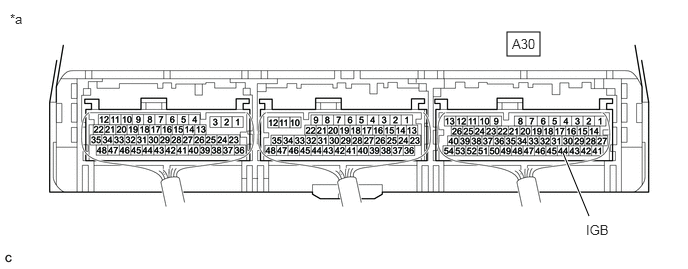

      GTY938606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Hybrid Vehicle Control ECU Assembly)      		 - -

      Standard Voltage

      Tester Connection Condition Specified Condition
      A30-44 (IGB) - Body ground Ignition switch off Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to  REMOVAL [10/2019 - 08/2020]  , or refer to  REMOVAL [08/2020 - 12/2021]  , or refer to  REMOVAL [12/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]  , or refer to  REMOVAL [10/2023 - ]

    Result:

    NG

    See step  4

  4. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))
    1. Disconnect the G54 certification ECU (smart key ECU assembly) connector.
    2. Measure the voltage according to the value(s) in the table below.
      GTY938606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Hybrid Vehicle Control ECU Assembly)      		 - -

      Standard Voltage

      Tester Connection Condition Specified Condition
      A30-44 (IGB) - Body ground Ignition switch off Below 1 V
    3. Reconnect the G54 certification ECU (smart key ECU assembly) connector.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [10/2019 - 08/2020]  , or refer to  REMOVAL [08/2020 - 12/2021]  , or refer to  REMOVAL [12/2021 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]  , or refer to  REMOVAL [10/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
