Section 136 (Hybrid Control System (Lithium-Ion Battery) - Circuit Tests (2 Of 2))
>>
HYBRID CONTROL SYSTEM (for LITHIUM-ION BATTERY)
>>
Rear Motor Resolver Circuit [06/2020 - ]
>>

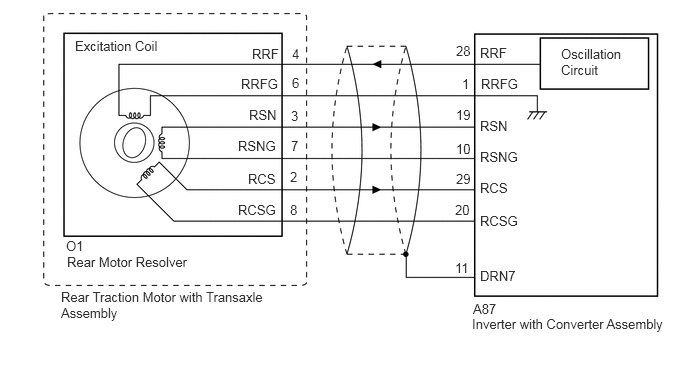

Wiring Diagram
Rear Motor Resolver Circuit [06/2020 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
