Drive Start Control [06/2020 - ]: Description

WARNING: This page is about a different variant/trim than selected.

The drive start control is controlled by the hybrid vehicle control ECU assembly.

If the hybrid vehicle control ECU assembly determines that the shift lever and accelerator pedal are operated abnormally, hybrid system output is restricted and, when necessary, a warning is displayed on the combination meter assembly.

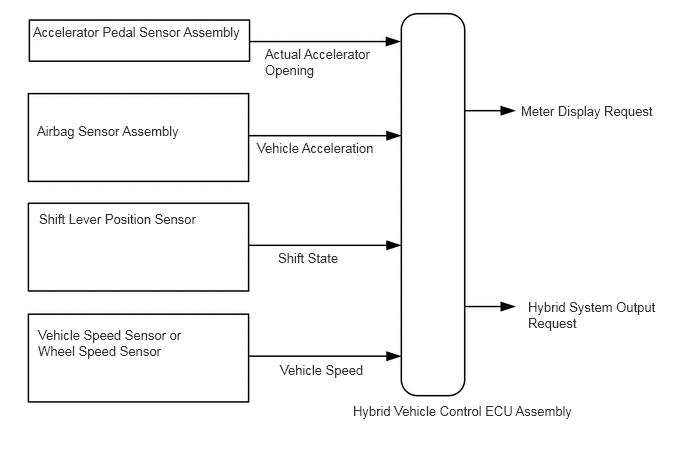

GTY930046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
