TRAIL Switch Circuit [06/2020 - ]: Procedure
- READ VALUE USING TECHSTREAM (CAN BUS CHECK)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: System Select / CAN Bus Check.
CAN Bus Check
Result
Result Proceed to All of the ECUs and sensors that are currently connected to the CAN communication system are displayed. A None of the ECUs and sensors that are currently connected to the CAN communication system are displayed, or some of them are not displayed. B - Turn the ignition switch off.
Result:
B
GO TO CAN COMMUNICATION SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [02/2019 - ]
Result:
A
See step 2
- CHECK DTC OUTPUT (HEALTH CHECK)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: System Select / Health Check.
- Check for DTCs.
Result
Result Proceed to No DTCs are output. A DTCs are output. B - Turn the ignition switch off.
Result:
B
GO TO DTC CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART [06/2020 - 12/2021] , or Refer to DIAGNOSTIC TROUBLE CODE CHART [12/2021 - 11/2024] , or Refer to DIAGNOSTIC TROUBLE CODE CHART [11/2024 - ]
Result:
A
See step 3
- READ VALUE USING TECHSTREAM (AUTO LSD SWITCH)
- Connect the Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the Techstream on.
- Enter the following menus: Powertrain / Hybrid Control / Data List / AUTO LSD Switch.
Powertrain > Hybrid Control > Data List
Tester Display Auto LSD Switch - Read the value displayed on the Techstream.
Powertrain > Hybrid Control > Data List
Tester Display Measurement Item Range Normal Condition Auto LSD Switch TRAIL switch (integration control and panel assembly) condition ON or OFF TRAIL mode switch (integration control and panel assembly) being pushed and held:
ON
TRAIL mode switch (integration control and panel assembly) not operated:
OFFResult
Result Proceed to The tester display changes according to the TRAIL mode switch operation. A The tester display does not change according to the TRAIL mode switch operation. B - Turn the ignition switch off.
Result:
A
GO TO PROBLEM SYMPTOMS TABLES. Refer to PROBLEM SYMPTOMS TABLE [06/2020 - ]
Result:
B
See step 4
- INSPECT TRAIL MODE SWITCH (INTEGRATION CONTROL AND PANEL ASSEMBLY)
Refer to INSPECTION [11/2018 - ]
Result
Proceed to OK NG Result:
NG
REPLACE INTEGRATION CONTROL AND PANEL ASSEMBLY. Refer to REMOVAL [11/2018 - ]
Result:
OK
See step 5
- CHECK HARNESS AND CONNECTOR (TRAIL MODE SWITCH (INTEGRATION CONTROL AND PANEL ASSEMBLY) - BODY GROUND)
- Disconnect the G32 TRAIL mode switch (integration control and panel assembly) connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to TRAIL Mode Switch (Integration Control and Panel Assembly))Standard Resistance
Tester Connection Condition Specified Condition G32-13 (GND) - Body ground Always Below 1 Ω - Reconnect the G32 TRAIL mode switch (integration control and panel assembly) connector.
Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU ASSEMBLY - TRAIL MODE SWITCH (INTEGRATION CONTROL AND PANEL ASSEMBLY))
- Disconnect the A30 hybrid vehicle control ECU assembly connector.
- Disconnect the G32 TRAIL mode switch (integration control and panel assembly) connector.
- Measure the resistance according to the value(s) in the table below.

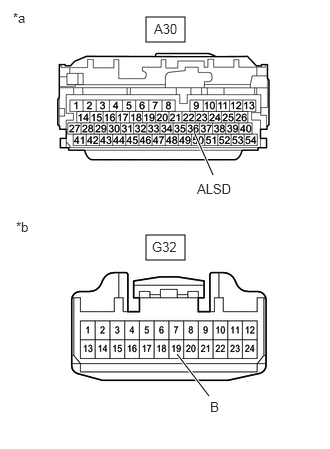

*a Front view of wire harness connector
(to Hybrid Vehicle Control ECU Assembly)*b Front view of wire harness connector
(to TRAIL Mode Switch (Integration Control and Panel Assembly))Standard Resistance
Tester Connection Condition Specified Condition A30-36 (ALSD) - G32-19 (B) Always Below 1 Ω A30-36 (ALSD) or G32-19 (B) - Body ground Always 10 kΩ or higher - Reconnect the G32 TRAIL mode switch (integration control and panel assembly) connector.
- Reconnect the A30 hybrid vehicle control ECU assembly connector.
Result
Proceed to OK NG
Result:
OK
REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
