DTC U0111-87: Lost Communication with Hybrid/EV Battery Energy Control Module "A" Missing Message [06/2020 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

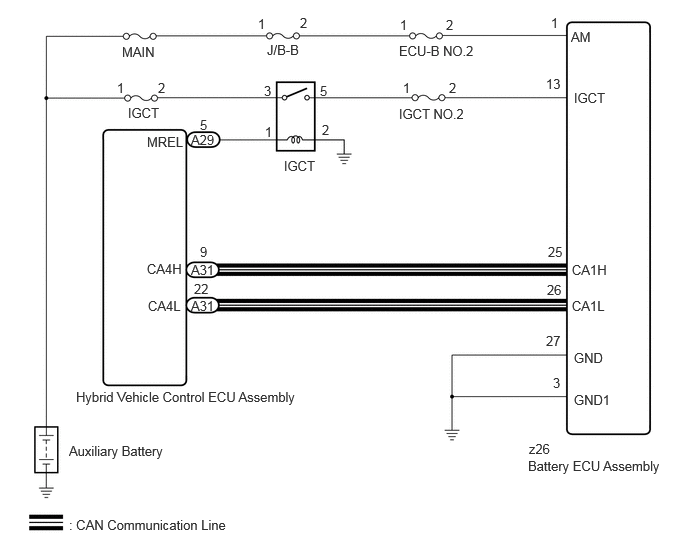

GTY975969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
