DTC P314A-31: Motor Electronics Coolant Pump "A" No Signal [06/2020 - ]: Procedure

Refer to PROCEDURE - Step 3

Result

Result:

NEXT

See step  2

HINT:

• When the auxiliary battery voltage is low, the inverter water pump with motor assembly may not operate.
• When the inverter water pump with motor assembly signal line (SWP - IWP) is open or its connection is faulty, the inverter water pump with motor assembly is operated forcibly.

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Enter the following menus: Powertrain / Hybrid Control / Active Test / Activate the Inverter Water Pump.
4. Perform the "Activate the Inverter Water Pump" Active Test.

   Powertrain > Hybrid Control > Active Test

   Tester Display
   Activate the Inverter Water Pump

5. Touch the inverter water pump assembly and check that it is operating (vibrating).

   OK

   The inverter water pump is operating (vibrating).

   HINT:

   Perform the Active Test with the inverter coolant temperature between -15 and 65°C (5 to 149°F).

6. Turn the ignition switch off.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  9

Result:

OK

See step  3

Refer to PROCEDURE - Step 1

Result

Result:

NG

CONNECT SECURELY

Result:

OK

See step  4

Refer to PROCEDURE - Step 7

Result

Result:

NG

CONNECT SECURELY

Result:

OK

See step  5

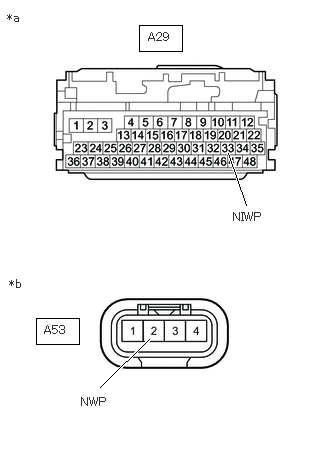

1. Disconnect the A29 hybrid vehicle control ECU assembly connector.
2. Disconnect the A53 inverter water pump assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Hybrid Vehicle Control ECU assembly)
   *b	Front view of wire harness connector (to Inverter Water Pump Assembly)

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   A29-33 (NIWP) - A53-2 (NWP)	Ignition switch off	Below 1 Ω

   Standard Resistance (Check for Short)

   Tester Connection	Condition	Specified Condition
   A29-33 (NIWP) or A53-2 (NWP) - Body ground and other terminals	Ignition switch off	10 kΩ or higher

   HINT:

   Check the condition (looseness, deterioration, etc.) of the wire to body ground for the inverter water pump assembly.

4. Reconnect the A53 inverter water pump assembly connector.
5. Reconnect the A29 hybrid vehicle control ECU assembly connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  6

1. Disconnect the A53 inverter water pump assembly connector.
2. Turn the ignition switch to ON.

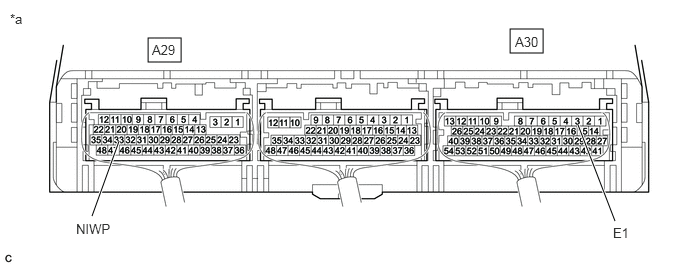

3. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Component with harness connected (Hybrid Vehicle Control ECU Assembly)

   -

   -

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A29-33 (NIWP) - A30-3 (E1)	Ignition switch ON	11 to 14 V

4. Turn the ignition switch off.
5. Reconnect the A53 inverter water pump assembly connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY

Refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

Result:

OK

See step  7

Refer to PROCEDURE - Step 3

Result

Result:

NEXT

See step  8

HINT:

When the auxiliary battery voltage is low, the inverter water pump assembly may not operate.

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Enter the following menus: Powertrain / Hybrid Control / Active Test / Activate the Inverter Water Pump.
4. Perform the "Activate the Inverter Water Pump" Active Test.

   Powertrain > Hybrid Control > Active Test

   Tester Display
   Activate the Inverter Water Pump

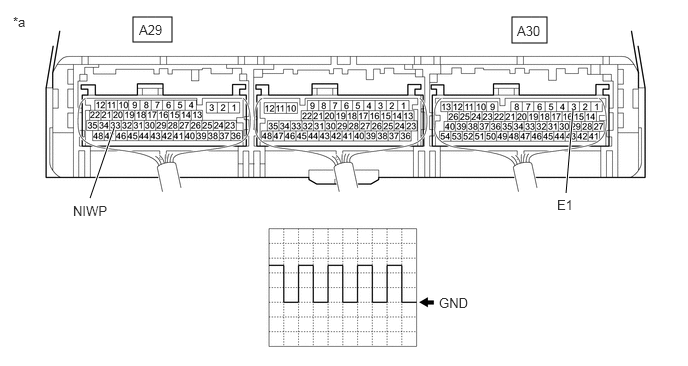

5. Connect an oscilloscope between the hybrid vehicle control ECU assembly terminals specified in the table below, and measure the waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Component with harness connected (Hybrid Vehicle Control ECU Assembly)

   -

   -

   Item	Content
   Terminal	A29-33 (NIWP) - A30-3 (E1)
   Equipment Setting	5 V/DIV., 5 ms./DIV.
   Condition	Ignition switch ON, during Active Test

   OK

   The period of the wavelength is 13 msec or less.

6. Turn the ignition switch off.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY

Refer to REMOVAL [10/2019 - 08/2020] , or refer to REMOVAL [08/2020 - 12/2021] , or refer to REMOVAL [12/2021 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

Result:

NG

See step  15

Refer to PROCEDURE - Step 7

Result

Result:

NG

CONNECT SECURELY (INVERTER WATER PUMP ASSEMBLY CONNECTOR)

Result:

OK

See step  10

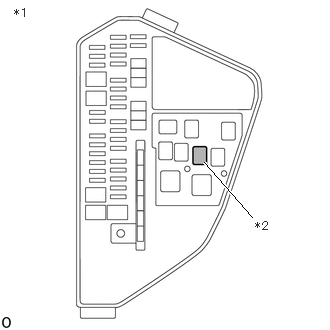

1. Check installation condition of the INV W/P relay.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Engine Room Relay Block and Junction Block Assembly
   *2	INV W/P Relay

   OK

   INV W/P relay is installed correctly.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  17

Result:

OK

See step  11

1. Remove the IGCT relay from the No. 3 relay block and junction block assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 3 Relay Block and Junction Block Assembly
   *2	IGCT Relay

2. Remove the INV W/P relay from the No. 1 engine room relay block and junction block assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Engine Room Relay Block and Junction Block Assembly
   *2	INV W/P Relay

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   5 (IGCT relay) - 1 (INV W/P relay)	Ignition switch off	Below 1 Ω

   NOTE:

   Do not apply excessive force when using the probes of the tester to perform the inspection. If excessive force is used, the terminals will be damaged.

   HINT:

   • Connectors

     Slightly shake the connector vertically and horizontally.

   • Wire Harness

     Slightly shake the wire harness vertically and horizontally.

     The connector joint and fulcrum of the vibration are the major areas that should be checked thoroughly.

   • No. 3 Relay Block and Junction Block Assembly

     Apply slight vibration with a finger to the No. 3 relay block and junction block assembly and check whether a malfunction occurs.

   • No. 1 Engine Room Relay Block and Junction Block Assembly

     Apply slight vibration with a finger to the No. 1 engine room relay block and junction block assembly and check whether a malfunction occurs.

   • INV W/P NO. 1 fuse

     Apply slight vibration with a finger to the INV W/P NO. 1 fuse and check whether a malfunction occurs.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Example
   *b	Shake Slightly
   *c	Vibrate Slightly

4. Install the IGCT relay and INV W/P relay.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  18

Result:

OK

See step  12

1. Remove the INV W/P relay from the No. 1 engine room relay block and junction block assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Engine Room Relay Block and Junction Block Assembly
   *2	INV W/P Relay

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3 - 5	Auxiliary battery voltage not applied between terminals 1 and 2	10 kΩ or higher
   	Auxiliary battery voltage applied between terminals 1 and 2	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	INV W/P Relay

3. Install the INV W/P relay.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  20

Result:

OK

See step  13

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

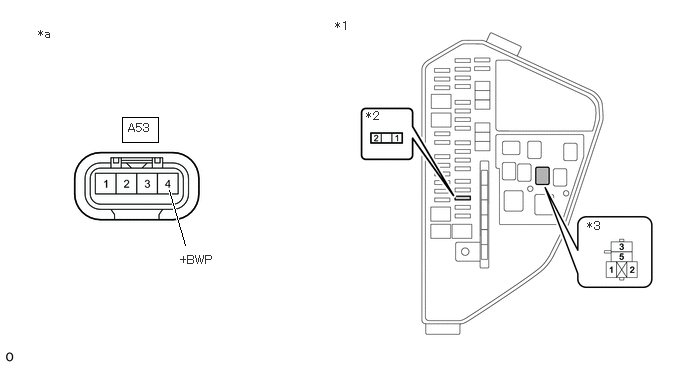

1. Disconnect the A53 inverter water pump assembly connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A53-4 (+BWP) - Body ground	Ignition switch ON	11 to 14 V

   NOTE:

   • If the ignition switch is turned to ON with the connectors disconnected, other DTCs will be stored. Be sure to clear the DTCs after the inspection.
   • Do not apply excessive force when using the probes of the tester to perform the inspection. If excessive force is used, the terminals will be damaged.

   HINT:

   • Connectors

     Slightly shake the connector vertically and horizontally.

   • Wire Harness

     Slightly shake the wire harness vertically and horizontally.

     The connector joint and fulcrum of the vibration are the major areas that should be checked thoroughly.

   • No. 1 Engine Room Relay Block and Junction Block Assembly

     Apply slight vibration with a finger to the No. 1 engine room relay block and junction block assembly and check whether a malfunction occurs.

   • INV W/P NO. 2 fuse

     Apply slight vibration with a finger to the INV W/P NO. 2 fuse and check whether a malfunction occurs.

   • INV W/P Relay

     Apply slight vibration with a finger to the INV W/P relay and check whether a malfunction occurs.

3. Reconnect the A53 inverter water pump assembly connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  21

Result:

OK

See step  14

1. Disconnect the A53 inverter water pump assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Inverter Water Pump Assembly)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A53-1 (GND) - Body ground	Ignition switch off	Below 1 Ω

3. Reconnect the A53 inverter water pump assembly connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  15

Refer to REMOVAL [11/2018 - ]

Result

Result:

NEXT

See step  16

1. After replacing the inverter water pump with motor assembly, add HV coolant and perform air bleeding.

   Refer to REPLACEMENT [11/2018 - 12/2021] , or refer to REPLACEMENT [12/2021 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

END

1. Remove the INV W/P relay from the No. 1 engine room relay block and junction block assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Engine Room Relay Block and Junction Block Assembly
   *2	INV W/P Relay

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3 - 5	Auxiliary battery voltage not applied between terminals 1 and 2	10 kΩ or higher
   	Auxiliary battery voltage applied between terminals 1 and 2	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	INV W/P Relay

3. Install the INV W/P relay.

   Result

   Proceed to
   OK
   NG

Result:

OK

CONNECT SECURELY (INV W/P RELAY)

Result:

NG

REPLACE RELAY (INV W/P)

1. Check installation condition of the INV W/P NO. 1 fuse.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 3 Relay Block and Junction Block Assembly
   *2	INV W/P NO. 1 Fuse

   OK

   INV W/P NO. 1 fuse is installed correctly.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  25

Result:

OK

See step  19

1. Remove the INV W/P NO. 1 fuse from the No. 3 relay block and junction block assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 3 Relay Block and Junction Block Assembly
   *2	INV W/P NO. 1 Fuse

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   INV W/P NO. 1 fuse	Always	Below 1 Ω

3. Install the INV W/P NO. 1 fuse.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (INV W/P NO. 1 FUSE HOLDER TERMINAL)

Result:

NG

See step  26

1. Check the terminals of the INV W/P relay holder.

   OK

   The terminals of the INV W/P relay holder are not bent, loose or corroded.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Engine Room Relay Block and Junction Block Assembly
   *2	INV W/P Relay

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE RELAY (INV W/P)

Result:

NG

See step  27

1. Check installation condition of the INV W/P NO. 2 fuse.

   OK

   INV W/P NO. 2 fuse is installed correctly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Engine Room Relay Block and Junction Block Assembly
   *2	INV W/P NO. 2 Fuse

   Result

   Proceed to
   OK
   NG

Result:

NG

CONNECT SECURELY (INV W/P NO. 2 FUSE)

Result:

OK

See step  22

1. Remove the INV W/P relay from the No. 1 engine room relay block and junction block assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Engine Room Relay Block and Junction Block Assembly
   *2	INV W/P Relay

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3 - 5	Auxiliary battery voltage not applied between terminals 1 and 2	10 kΩ or higher
   	Auxiliary battery voltage applied between terminals 1 and 2	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	INV W/P Relay

3. Install the INV W/P relay.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  32

Result:

OK

See step  23

1. Remove the INV W/P relay and INV W/P NO. 2 fuse from the No. 1 engine room relay block and junction block assembly.
2. Disconnect the A53 inverter water pump assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Engine Room Relay Block and Junction Block Assembly	*2	INV W/P NO. 2 Fuse
   *3	INV W/P Relay	-	-
   *a	Front view of wire harness connector (to Inverter Water Pump Assembly)	-	-

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A53-4 (+BWP) - 3 (INV W/P relay)	Ignition switch off	Below 1 Ω
   2 (INV W/P NO. 2 fuse) or A53-4 (+BWP) - Body ground and other terminals	Ignition switch off	10 kΩ or higher

   NOTE:

   Do not apply excessive force when using the probes of the tester to perform the inspection. If excessive force is used, the terminals will be damaged.

4. Reconnect the A53 inverter water pump assembly connector.
5. Install the INV W/P relay and INV W/P NO. 2 fuse.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  24

1. Remove the INV W/P NO. 2 fuse from the No. 1 engine room relay block and junction block assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Engine Room Relay Block and Junction Block Assembly
   *2	INV W/P NO. 2 Fuse

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   INV W/P NO. 2 fuse	Always	Below 1 Ω

3. Install the INV W/P NO. 2 fuse.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (INV W/P NO. 2 FUSE HOLDER TERMINAL OR INV W/P RELAY HOLDER TERMINAL)

Result:

NG

See step  28

1. Remove the INV W/P relay from the No. 1 engine room relay block and junction block assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Engine Room Relay Block and Junction Block Assembly
   *2	INV W/P Relay

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3 - 5	Auxiliary battery voltage not applied between terminals 1 and 2	10 kΩ or higher
   	Auxiliary battery voltage applied between terminals 1 and 2	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	INV W/P Relay

3. Install the INV W/P relay.

   Result

   Proceed to
   OK
   NG

Result:

OK

CONNECT SECURELY (INV W/P NO. 1 FUSE)

Result:

NG

See step  30

1. Check the terminals of the INV W/P NO. 1 fuse holder.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 3 Relay Block and Junction Block Assembly
   *2	INV W/P NO. 1 Fuse

   OK

   The terminals of the INV W/P NO. 1 fuse holder are not bent, loose or corroded.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE FUSE (INV W/P NO. 1)

Result:

NG

See step  31

1. Repair or replace the terminals of the INV W/P relay holder.

   Result

   Proceed to
   NEXT

Result:

NEXT

REPLACE RELAY (INV W/P)

Refer to REMOVAL [11/2018 - ]

Result

Result:

NEXT

See step  29

1. After replacing the inverter water pump with motor assembly, add HV coolant and perform air bleeding.

   Refer to REPLACEMENT [11/2018 - 12/2021] , or refer to REPLACEMENT [12/2021 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

REPLACE FUSE (INV W/P NO. 2)

1. Replace INV W/P relay.

   Result

   Proceed to
   NEXT

Result:

NEXT

CONNECT SECURELY (INV W/P NO. 1 FUSE)

Result

Result:

NEXT

REPLACE FUSE (INV W/P NO. 1)

1. Check the terminals of the INV W/P relay holder.

   OK

   The terminals of the INV W/P relay holder are not bent, loose or corroded.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Engine Room Relay Block and Junction Block Assembly
   *2	INV W/P Relay

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  34

Result:

OK

See step  33

1. Remove the INV W/P NO. 1 fuse from the No. 3 relay block and junction block assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 3 Relay Block and Junction Block Assembly
   *2	INV W/P NO. 1 Fuse

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   INV W/P NO. 1 fuse	Always	Below 1 Ω

3. Install the INV W/P NO. 1 fuse.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE RELAY (INV W/P)

Result:

NG

See step  36

1. Remove the INV W/P NO. 1 fuse from the No. 3 relay block and junction block assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 3 Relay Block and Junction Block Assembly
   *2	INV W/P NO. 1 Fuse

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   INV W/P NO. 1 fuse	Always	Below 1 Ω

3. Install the INV W/P NO. 1 fuse.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  37

Result:

OK

See step  35

1. Repair or replace the terminals of the INV W/P relay holder.

   Result

   Proceed to
   NEXT

Result:

NEXT

REPLACE RELAY (INV W/P)

1. Replace INV W/P relay.

   Result

   Proceed to
   NEXT

Result:

NEXT

REPLACE FUSE (INV W/P NO. 1)

1. Repair or replace the terminals of the INV W/P relay holder.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  38

1. Replace INV W/P relay.

   Result

   Proceed to
   NEXT

Result:

NEXT

REPLACE FUSE (INV W/P NO. 1)
