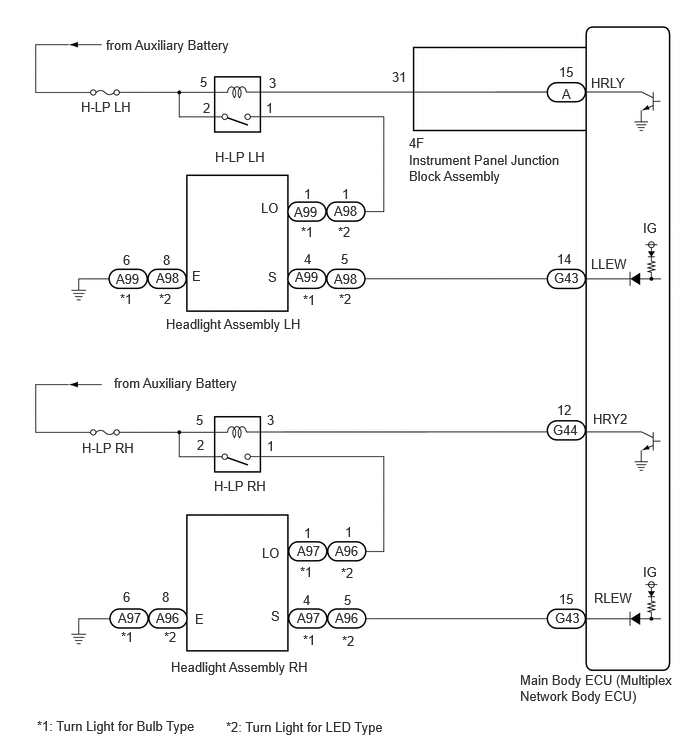

DTC B2439-00: Headlight LH Circuit; DTC B243A-00: Headlight RH Circuit [10/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Toyota RAV4, 2024 Toyota RAV4, 2023 Toyota RAV4, and 2022 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
