Parts Location [08/2020 - 12/2021]: Illustration

WARNING: This page is about a different car, the 2025 Toyota RAV4, 2024 Toyota RAV4, 2023 Toyota RAV4, 2022 Toyota RAV4, and 2021 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Gasoline Model	-	-

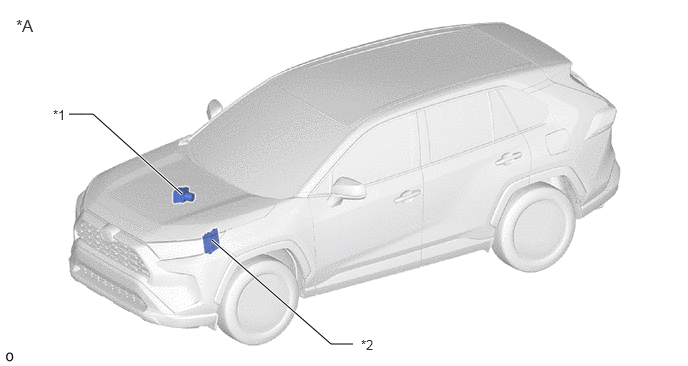

*1	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	*2	ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for HV Model	-	-

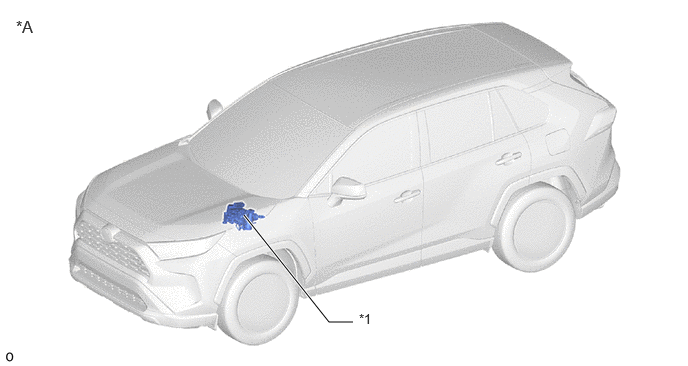

*1	BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU	-	-

*A	for HV Model	*B	w/ Rear Seat Belt Warning System

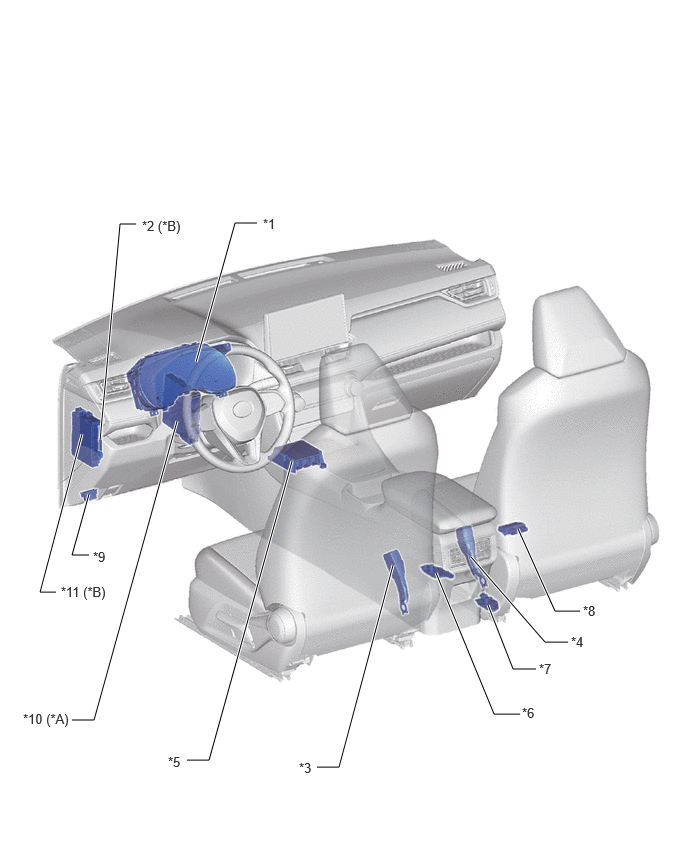

*1	COMBINATION METER ASSEMBLY	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	FRONT SEAT INNER BELT ASSEMBLY LH	*4	FRONT SEAT INNER BELT ASSEMBLY RH
*5	AIRBAG ECU ASSEMBLY	*6	FRONT OCCUPANT CLASSIFICATION SENSOR LH
*7	REAR OCCUPANT CLASSIFICATION SENSOR LH	*8	OCCUPANT DETECTION ECU
*9	DLC3	*10	HYBRID VEHICLE CONTROL ECU
*11	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY	-	-

*A	w/ Rear Seat Belt Warning System	-	-

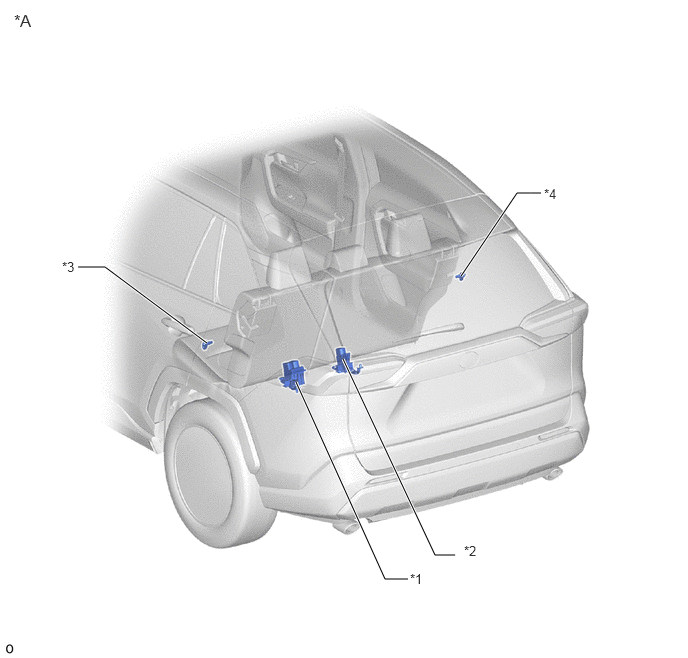

*1	REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH	*2	REAR SEAT INNER BELT ASSEMBLY
*3	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH	*4	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH
