Installation [02/2019 - ]: Procedure

1. Install a new front drive shaft hole snap ring LH.

1. Coat the snap ring of the inboard joint shaft assembly with MP grease.
2. for Automatic Transaxle:

   Coat the splines of the front drive inboard joint assembly with Toyota genuine ATF WS.

3. for Hybrid Vehicle Transaxle:

   Coat the splines of the front drive inboard joint assembly with Toyota genuine ATF WS.

4. Set the front drive shaft hole snap ring LH with the opening side facing down.
5. Coat the lip of the front drive shaft oil seal LH with MP grease and Toyota genuine oil seal side lip grease as shown in the illustration.

   HINT:

   Apply a light coat of MP grease and Toyota genuine oil seal side lip grease to the entire circumference of the front drive shaft oil seal LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Cross Section of Front Drive Shaft Oil Seal LH
   	MP Grease
   	Toyota Genuine Oil Seal Side Lip Grease

6. Align the splines and tap in the front drive shaft assembly with a brass bar and hammer.
   NOTE:

   • Using MP grease, set the front drive shaft hole snap ring in the groove with the opening facing downwards and centered radially.
   • Be careful not to damage the oil seal, front axle inboard joint boot and front drive shaft dust cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. for Automatic Transaxle:

   Coat the splines of the front drive inboard joint assembly with Toyota genuine ATF WS.

2. for Hybrid Vehicle Transaxle:

   Coat the splines of the front drive inboard joint assembly with Toyota genuine ATF WS.

3. Coat the lip of the front drive shaft oil seal RH with MP grease and Toyota genuine oil seal side lip grease as shown in the illustration.

   HINT:

   Apply a light coat of MP grease and Toyota genuine oil seal side lip grease to the entire circumference of the front drive shaft oil seal RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Cross Section of Front Drive Shaft Oil Seal RH
   	MP Grease
   	Toyota Genuine Oil Seal Side Lip Grease

4. Align the inboard joint splines, and securely insert the front drive shaft assembly RH.
   NOTE:

   • Do not damage the front drive shaft oil seal RH.
   • Do not damage the front axle inboard joint boot.
5. for Gasoline model:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

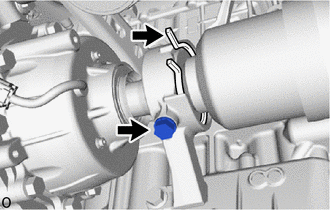

   1. Install the drive shaft bearing bracket hole snap ring and a new bolt.

      Torque: 32.4 N.m (330 kgf/cm, 24 ft.lbf)

      NOTE:

      Before installing the bolt, check the end for rubber.

6. for HV model:
   1. Install the front drive shaft assembly RH with the 2 bolts.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 50.5 N.m (515 kgf/cm, 37 ft.lbf)

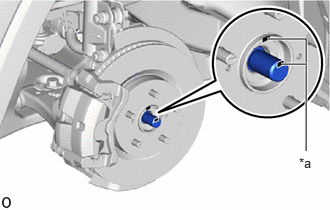

7. Align the matchmarks and install the front drive shaft assembly RH to the front axle hub sub-assembly.
   NOTE:

   • Do not push the front axle assembly further out of the vehicle than is necessary.
   • Be careful not to damage the front axle outboard joint boot.
   • Check for any foreign matter on the speed sensor rotor and insertion part.
   • Do not damage the speed sensor rotor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

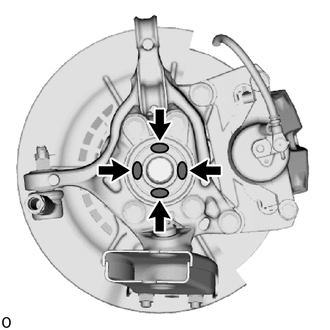

1. Apply MP grease to the entire contact surface between the front drive shaft assembly and axle hub bearing surface or only apply 0.1 to 0.3 g (0.00353 to 0.0105 oz.) of Toyota Body Grease W to the 4 areas on the axle hub bearing shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Toyota Body Grease W

2. Align the matchmarks and connect the steering knuckle with axle hub LH.
3. Set the 2 front speed sensor LH hooks on the front shock absorber assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Hook

   NOTE:

   Do not twist the front speed sensor when installing it.

4. Install the front speed sensor and front flexible hose to the front shock absorber assembly with the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 29 N.m (296 kgf/cm, 21 ft.lbf)

   NOTE:

   Do not twist the front flexible hose when installing it.

5. Install the front speed sensor to the steering knuckle with the bolt.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

   NOTE:

   • Prevent foreign matter from attaching to the front speed sensor tip.
   • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
   • After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
   • Do not twist the front speed sensor when installing it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Engage the clamp.
   NOTE:

   Do not twist the front speed sensor when installing it.

HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 4 [02/2019 - 12/2021] , or refer to PROCEDURE - Step 4 [12/2021 - ]

HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 14 [02/2019 - 12/2021] , or refer to PROCEDURE - Step 14 [12/2021 - ]

HINT:

Use the same procedure described for the LH side.

Refer to PROCEDURE - Step 15 [02/2019 - 12/2021] , or refer to PROCEDURE - Step 15 [12/2021 - ]

HINT:

Use the same procedure described for the LH side.

1. Install the front axle shaft nut LH.

   Refer to PROCEDURE - Step 8 [02/2019 - 12/2021] , or refer to PROCEDURE - Step 8 [12/2021 - ]

2. Stake the front axle shaft nut LH.

   Refer to PROCEDURE - Step 16 [02/2019 - 12/2021] , or refer to PROCEDURE - Step 16 [12/2021 - ]

HINT:

Use the same procedure described for the LH side.

• for Automatic Transaxle: Refer to REPLACEMENT [11/2018 - 10/2019] , or refer to REPLACEMENT [10/2019 - ]
• for Hybrid Vehicle Transaxle: Refer to REPLACEMENT [02/2019 - 10/2019] , or refer to REPLACEMENT [10/2019 - ]

• for GF1A: Refer to PROCEDURE - Step 3 [11/2018 - 10/2023] , or refer to PROCEDURE - Step 3 [10/2023 - ]
• for GF2A: Refer to PROCEDURE - Step 3 [11/2018 - 10/2019] , or refer to PROCEDURE - Step 3 [10/2019 - ]

• for A25A-FKS: Refer to PROCEDURE - Step 97 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 97 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 97 [12/2021 - ]
• for A25A-FXS: Refer to PROCEDURE - Step 63 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 63 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 63 [12/2021 - ]

• for A25A-FKS: Refer to PROCEDURE - Step 98 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 98 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 98 [12/2021 - ]
• for A25A-FXS: Refer to PROCEDURE - Step 64 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 64 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 64 [12/2021 - ]

• for A25A-FKS: Refer to PROCEDURE - Step 99 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 99 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 99 [12/2021 - ]
• for A25A-FXS: Refer to PROCEDURE - Step 65 [02/2019 - 08/2020] , or refer to PROCEDURE - Step 65 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 65 [12/2021 - ]

Refer to INSTALLATION [11/2018 - ]

• w/ Vacuum Brake Booster: Refer to TEST MODE PROCEDURE [11/2018 - ]
• w/o Vacuum Brake Booster: Refer to TEST MODE PROCEDURE [02/2019 - 08/2020] , or refer to TEST MODE PROCEDURE [08/2020 - 12/2021] , or refer to TEST MODE PROCEDURE [12/2021 - ]

Refer to ADJUSTMENT [11/2018 - 08/2020] , or refer to ADJUSTMENT [08/2020 - 12/2021] , or refer to ADJUSTMENT [12/2021 - ]
