Removal [11/2018 - ]: Procedure

Refer to PRECAUTION [11/2018 - 12/2021] , or refer to PRECAUTION [12/2021 - ]

1. Move the shift lever to P.
2. Turn the ignition switch (w/ vacuum brake booster) or power switch (w/o vacuum brake booster) on (IG).
3. Operate the electric parking brake switch assembly to release the parking brake.

   HINT:

   If the parking brake cannot be released:

   • w/ Vacuum Brake Booster

     Refer to OPERATION METHOD [11/2018 - ]

   • w/o Vacuum Brake Booster

     Refer to OPERATION METHOD [11/2018 - 12/2021] , or refer to OPERATION METHOD [12/2021 - ]

4. Turn the ignition switch to OFF.

Refer to REMOVAL [11/2018 - ]

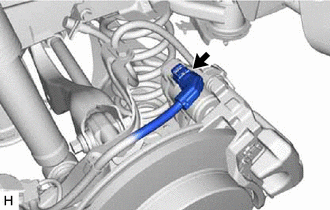

1. Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly LH.
   NOTE:

   • Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.
   • Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

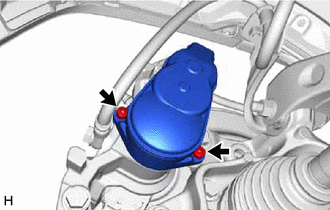

1. Using a 5 mm hexagon socket wrench, remove the 2 bolts and parking brake actuator assembly LH.
   NOTE:

   • Check that there are no brake fluid leaks from the back of the rear disc brake cylinder assembly.
   • If there are any brake fluid leaks, replace the rear disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the parking brake actuator assembly LH.
