Components [12/2021 - ]

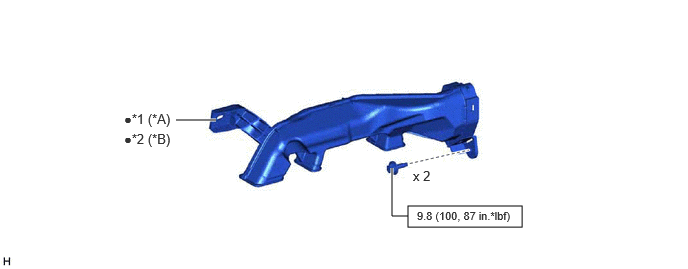

Fig 1: Brake Pedal (W/o Vacuum Brake Booster) Replacement Components With Torque Specifications [12/2021 - ] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for TMC Made | *B | for TMMC Made |
| *1 | NO. 1 AIR DUCT | *2 | NO. 2 AIR DUCT SUB-ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

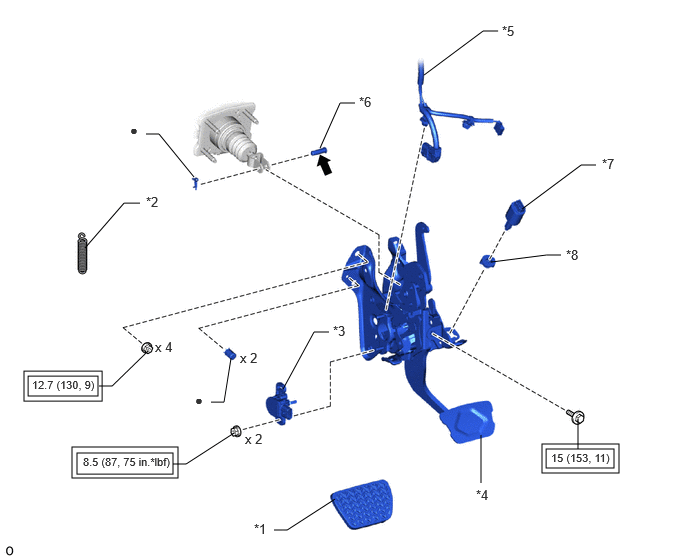

Fig 2: Brake Pedal (W/o Vacuum Brake Booster) Replacement Components With Torque Specifications [12/2021 - ] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BRAKE PEDAL PAD | *2 | BRAKE PEDAL RETURN SPRING |
| *3 | BRAKE PEDAL STROKE SENSOR ASSEMBLY | *4 | BRAKE PEDAL SUPPORT ASSEMBLY |
| *5 | ENGINE ROOM MAIN WIRE | *6 | PUSH ROD PIN |
| *7 | STOP LIGHT SWITCH ASSEMBLY | *8 | STOP LIGHT SWITCH ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |
