Removal [11/2018 - ]: Procedure

  1. REMOVE FRONT FENDER MUDGUARD LH (for Short Type)

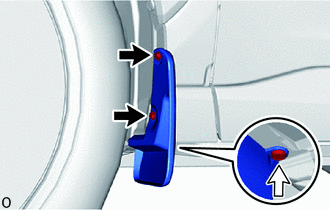

    GTY923729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Screw
    Clip
    1. Remove the 2 screws.
    2. Remove the clip and front fender mudguard LH.
  2. REMOVE REAR QUARTER PANEL MUDGUARD LH (for Short Type)

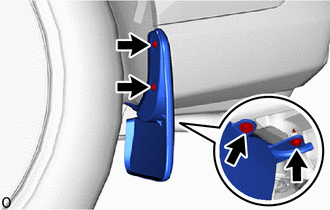

    GTY900187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 screws and rear quarter panel mudguard LH.
  3. REMOVE FRONT FENDER MUDGUARD LH (for Long Type)

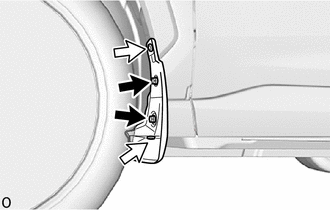

    GTY928197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Screw
    Clip
    1. except Off Road Package:
      1. Remove the 2 screws.
      2. Remove the 2 clips and front fender mudguard LH.
    2. for Off Road Package:

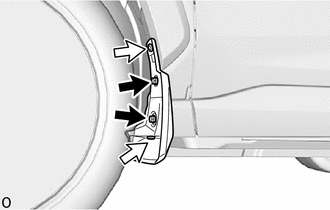

      GTY868374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip
      1. Remove the 2 screws.
      2. Remove the 2 clips and front fender mudguard LH.
  4. REMOVE REAR QUARTER PANEL MUDGUARD LH (for Long Type)
    1. except Off Road Package:

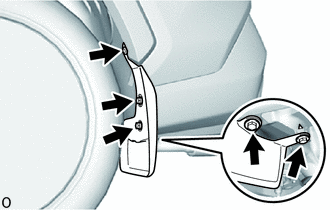

      GTY900193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 5 screws and rear quarter panel mudguard LH.
    2. for Off Road Package:

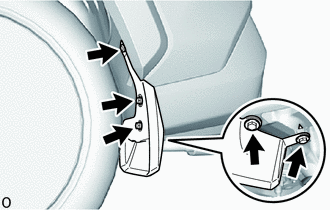

      GTY900190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 5 screws and rear quarter panel mudguard LH.
