Removal [02/2019 - 08/2020]: Procedure

  1. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

    HINT:

    Use the same procedure described for the RH side.

    1. for Short Type:

      Refer to PROCEDURE - Step 3

    2. for Long Type:

      Refer to PROCEDURE - Step 2

  2. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

    HINT:

    Use the same procedure as for the RH and LH sides.

  3. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY LH
    1. Remove the screw.
      GTY870267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Clip
    2. Remove the 2 clips.
    3. Put protective tape around the front fender moulding sub-assembly LH.
      GTY870375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    4. Pull back the edge of the front fender liner LH and detach the claw by pushing the area indicated by the arrow in the illustration with a finger.
      GTY870039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction(1)
      Remove in this Direction(2)
      NOTE:
      • Do not apply excessive force when pulling back the front fender liner LH.
      • To avoid damaging the claws, do not forcibly pull the front fender moulding sub-assembly LH.
    5. Detach the clip and disconnect the front fender moulding sub-assembly LH as shown in the illustration.
      GTY914839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
  4. REMOVE FRONT FENDER MOULDING SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE FRONT BUMPER ASSEMBLY
    1. Remove the 4 bolts.
      GTY900334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 screws.
      GTY935893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Put protective tape around the front bumper assembly.
      GTY876412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Use the same procedure as for the RH and LH sides.

    4. Remove the 2 clips.
      GTY923833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure as for the RH and LH sides.

    5. Place your hand at the positions shown in the illustration and pull in the removal direction to detach the claw.
      GTY898582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      HINT:

      Use the same procedure as for the RH and LH sides.

    6. Pull back the edge of the front fender liner LH and disconnect the 2 connectors.
      GTY940632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Detach the claw and remove the front bumper assembly.
      GTY907410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    8. Remove the 2 clips from the front fender moulding sub-assembly LH.
      NOTE:

      If the front bumper assembly has been removed, replace the clip with a new one.

      HINT:

      Use the same procedure as for the RH and LH sides.

      GTY899617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT BUMPER SIDE RETAINER LH

    HINT:

    Perform the following procedure only when replacement of a front bumper side retainer LH is necessary.

    1. Remove the bolt.
      GTY941038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90°
      Rotation Direction
      Remove in this Direction
    2. Using a screwdriver, turn the clip 90° and detach the clip and claw and remove the front bumper side retainer LH as shown in the illustration.
  7. REMOVE FRONT BUMPER SIDE RETAINER RH

    HINT:

    • Perform the following procedure only when replacement of a front bumper side retainer RH is necessary.
    • Use the same procedure as for the RH and LH sides.
  8. REMOVE FRONT BUMPER NO. 2 ENERGY ABSORBER

    HINT:

    Perform the following procedure only when replacement of a front bumper No. 2 energy absorber is necessary.

    1. Detach the guide and remove the front bumper No. 2 energy absorber.
      GTY873107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  9. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    HINT:

    Perform the following procedure only when replacement of a front bumper reinforcement sub-assembly is necessary.

    1. Detach the wire harness clamp.
      GTY882617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 bolts and front bumper reinforcement sub-assembly as shown in the illustration.
      GTY880154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  10. REMOVE FRONT BUMPER NO. 2 REINFORCEMENT (for HV Model)

    HINT:

    Perform the following procedure only when replacement of a front bumper No. 2 reinforcement is necessary.

    1. Remove the 4 nuts and front bumper No. 2 reinforcement.
      GTY937273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 ENGINE UNDER COVER

    HINT:

    Perform the following procedure only when replacement of a front bumper extension sub-assembly LH and RH or front bumper lower absorber is necessary.

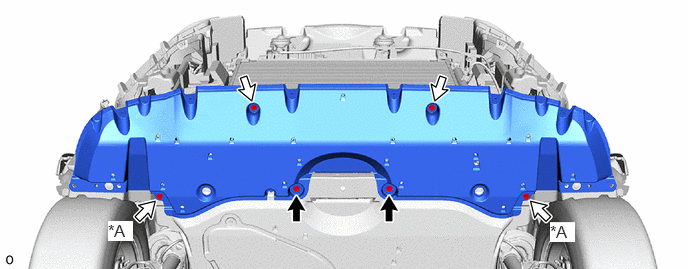

    1. for Short Type Front Fender Front Splash Shield:
      1. Remove the 4 screws and 2 bolts.
        GTY867384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A for Short Type Front Fender Front Splash Shield - -
        Bolt Screw
    2. for Long Type Front Fender Front Splash Shield:
      1. Remove the 2 screws and 2 bolts.
    3. Detach the guide and remove the No. 1 engine under cover.
      GTY876981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  12. REMOVE FRONT BUMPER LOWER ABSORBER (for Gasoline Model)

    HINT:

    Perform the following procedure only when replacement of a front bumper lower absorber is necessary.

    1. Remove the 5 bolts.
      GTY899373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the guide and remove the front bumper lower absorber as shown in the illustration.
      GTY936665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  13. REMOVE FRONT BUMPER LOWER ABSORBER (for HV Model)

    HINT:

    Perform the following procedure only when replacement of a front bumper lower absorber is necessary.

    1. Remove the clip.
      GTY899822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw and remove the front bumper lower absorber.
      GTY861741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  14. REMOVE FRONT BUMPER SEAL (for TMMC Made)

    HINT:

    • Perform the following procedure only when replacement of a front bumper seal is necessary.
    • When removing the front bumper seal, if the double-sided tape is difficult to remove, heat the adhesive of the front bumper lower absorber and front bumper seal using a heat light.

    Standard

    Item Temperature
    Front Bumper Lower Absorber 20 to 30°C (68 to 86°F)
    Front Bumper Seal 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the front bumper lower absorber and front bumper seal excessively.

    1. Remove the 2 front bumper seals.
      GTY865937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for HV Model *B for Gasoline Model
  15. REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

    HINT:

    Perform the following procedure only when replacement of a front bumper extension sub-assembly LH is necessary.

    1. Remove the 2 nuts, 2 bolts and front bumper extension sub-assembly LH.
      GTY907818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  16. REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY RH

    HINT:

    • Perform the following procedure only when replacement of a front bumper extension sub-assembly RH is necessary.
    • Use the same procedure as for the RH and LH sides.
