Home >> Toyota >> 2020 >> RAV4 LE, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Door Lock System - Service Information >> Door Control Battery >> Removal [11/2018 - 08/2020] >> Procedure

Removal [11/2018 - 08/2020]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

    Refer to PROCEDURE - Step 24 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 24 [02/2019 - 08/2020]

  2. REMOVE COWL SIDE TRIM BOARD RH

    Refer to PROCEDURE - Step 30 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 30 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 30 [10/2019 - 08/2020]

  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

  4. REMOVE INSTRUMENT SIDE PANEL RH

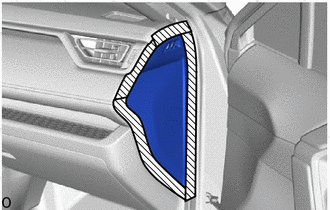

    1. Apply protective tape around the instrument side panel RH as shown in the illustration.
      GTY839259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

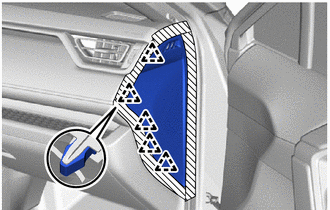

    2. Using the moulding remover B, detach the clip.
      GTY904955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

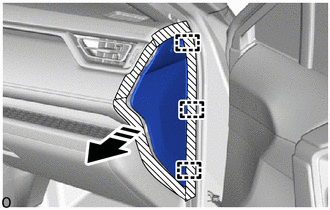

    3. Detach the guide and remove the instrument side panel RH as shown in the illustration.
      GTY859991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 31 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 31 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 31 [10/2019 - 08/2020]

  6. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 32 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 32 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 32 [10/2019 - 08/2020]

  7. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 33 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 33 [02/2019 - 10/2019] , or refer to PROCEDURE - Step 33 [10/2019 - 08/2020]

  8. REMOVE DOOR CONTROL BATTERY

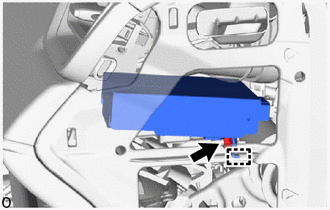

    1. Remove the nut and guide to disconnect the door control battery as shown in the illustration.
      GTY904954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

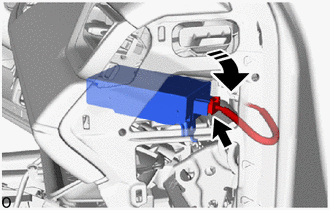

    2. Position the connector of the door control battery facing the outside of the vehicle and disconnect it as shown in the illustration.
      NOTE:

      Take care not to scratch the instrument panel reinforcement with your hands.

      GTY874266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

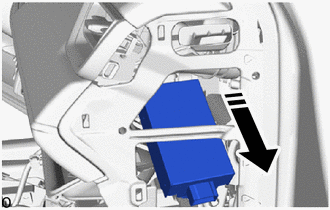

    3. Remove the door control battery to the instrument panel reinforcement assembly as shown in the illustration.
      GTY890232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
