Installation [11/2018 - 10/2019]: Procedure

  1. INSTALL NAVIGATION ECU
  2. INSTALL NO. 2 MULTI-MEDIA MODULE BRACKET
    1. w/o Mayday System:
      1. Install the No. 2 multi-media module bracket with the 2 screws.
        GTY918195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

    2. w/ Mayday System:
      1. Install the No. 2 multi-media module bracket with the 3 screws.
        GTY857250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

  3. INSTALL NO. 1 MULTI-MEDIA MODULE BRACKET
    1. w/o Mayday System:
      1. Install the No. 1 multi-media module bracket with the 2 screws.

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

        GTY918196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Mayday System:
      1. Install the No. 1 multi-media module bracket with the 3 screws.
        GTY930379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

  4. INSTALL TELEPHONE ECU WIRE (TO TRANSCEIVER) (w/ Mayday System)
    1. Attach the clamp to install the telephone ECU wire (to transceiver).
      GTY943879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  5. INSTALL NO. 2 NAVIGATION WIRE
    1. w/ Mayday System:
      1. Attach the clamp to install the No. 2 navigation wire.
        GTY918412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the connector.
    2. w/o Mayday System:
      1. Attach the clamp to install the No. 2 navigation wire.
        GTY918197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the connector.
  6. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. w/ Mayday System:
      1. Attach the clamp to install the No. 2 antenna cord sub-assembly.
        GTY918413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the 4 connectors.
    2. w/o Mayday System:
      1. Attach the clamp to install the No. 2 antenna cord sub-assembly.
        GTY918198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the connector.
  7. INSTALL NAVIGATION ECU WITH BRACKET
    1. w/ Mayday System:
      1. Connect the 2 connectors.
      2. Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, attach the guide to temporarily install the navigation ECU with bracket.

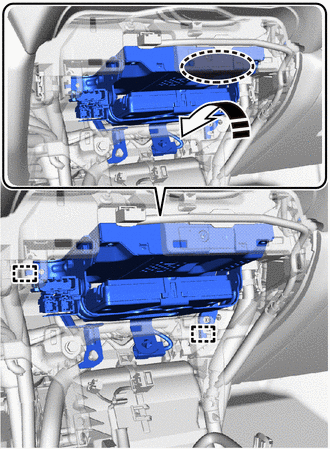

        GTY887505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place hand here
        Install in this Direction
      3. Attach the clamp and connect the 4 connectors.

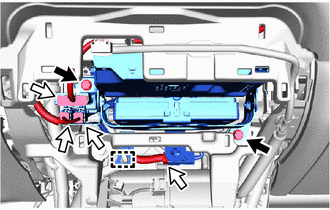

        GTY871557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector
      4. Install the 2 bolts.

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

    2. w/o Mayday System:
      1. Connect each connector.

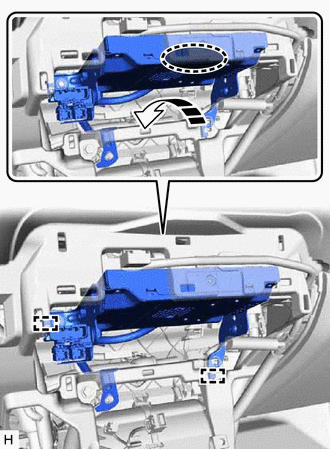

      2. GTY900816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place Hand Here
        Install in this Direction

        Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, attach the guide to temporarily install the navigation ECU with bracket.

      3. Attach the clamp and connect the 3 connectors.

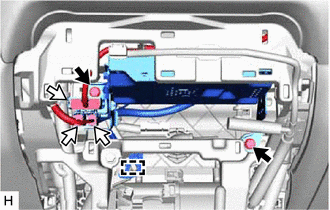

        GTY905304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector
      4. Install the 2 bolts.

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  8. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 28

  9. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  10. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [11/2018 - 12/2021]
