Installation [10/2019 - 10/2022]: Procedure

  1. INSTALL NAVIGATION ECU
  2. INSTALL NO. 2 MULTI-MEDIA MODULE BRACKET
    1. w/o Mayday System:
      1. for Type A:

        Install the No. 2 multi-media module bracket with the 2 screws.

        GTY918195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

      2. for Type B:

        Install the No. 2 multi-media module bracket with the 2 screws.

        GTY860894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

    2. w/ Mayday System:
      1. Install the No. 2 multi-media module bracket with the 4 screws.
        GTY931196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

  3. INSTALL NO. 1 MULTI-MEDIA MODULE BRACKET
    1. w/o Mayday System:
      1. for Type A:

        Install the No. 1 multi-media module bracket with the 2 screws.

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

        GTY918196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Type B:

        Install the No. 1 multi-media module bracket with the 2 screws.

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

        GTY860902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Mayday System:
      1. Install the No. 1 multi-media module bracket with the 3 screws.
        GTY860930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

  4. INSTALL TELEPHONE ECU WIRE (TO TRANSCEIVER) (w/ Mayday System)
    1. Connect the 2 connectors to install the telephone ECU wire (to transceiver).
      GTY860917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 2 NAVIGATION WIRE
    1. w/o Mayday System:
      1. for Type A:
        1. Attach the clamp to install the No. 2 navigation wire.
        2. Connect the connector.
        GTY918197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Type B:
        GTY931189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Attach the clamp to install the No. 2 navigation wire.
        2. Connect the connector.
    2. w/ Mayday System:
      1. Attach the clamp to install the No. 2 navigation wire.
        GTY860913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the connector.
  6. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. w/o Mayday System:
      1. for Type A:
        1. Attach the clamp to install the No. 2 antenna cord sub-assembly.
        2. Connect the connector.
        GTY918198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Type B:
        GTY860901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Attach the clamp to install the No. 2 antenna cord sub-assembly.
        2. Connect the connector.
    2. w/ Mayday System:
      1. Attach the clamp to install the No. 2 antenna cord sub-assembly.
        GTY860916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the 4 connectors.
  7. INSTALL NAVIGATION ECU WITH BRACKET (w/o Mayday System)
    1. for Type A:
      1. Connect each connector.

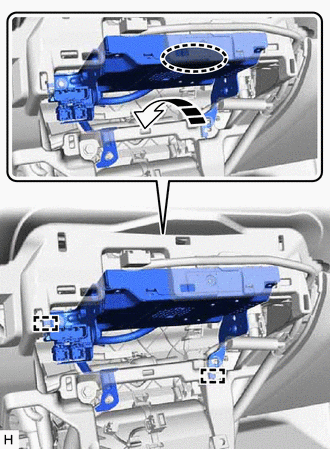

      2. GTY939989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place Hand Here
        Install in this Direction

        Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, attach the guide to temporarily install the navigation ECU with bracket.

      3. Attach the clamp and connect the 3 connectors.

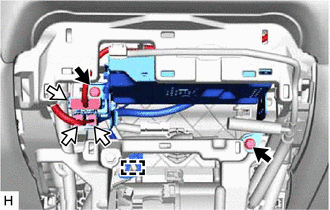

        GTY905302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector
      4. Install the 2 bolts.

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

    2. for Type B:
      1. Connect the connector.
      2. Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, attach the guide to temporarily install the navigation ECU with bracket.

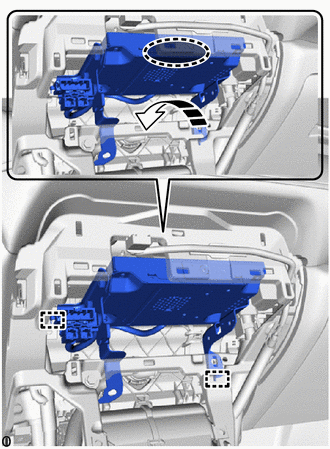

        GTY880321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Place Hand Here
        Install in this Direction
      3. Connect the 3 connectors.

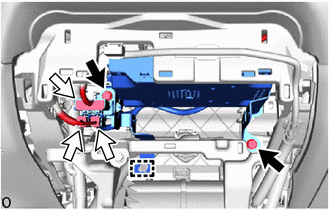

        GTY925982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector
      4. Install the 2 bolts.

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  8. INSTALL NAVIGATION ECU WITH BRACKET (w/ Mayday System)
    1. Connect the 3 connectors.
    2. Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, attach the guide to temporarily install the navigation ECU with bracket.

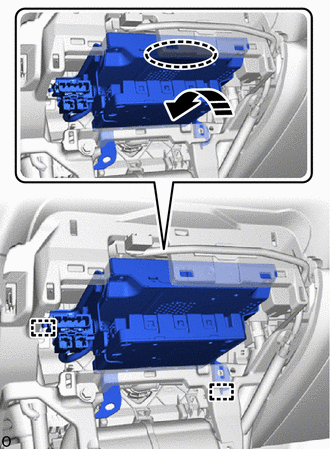

      GTY933039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Install in this Direction
    3. Connect the 3 connectors.

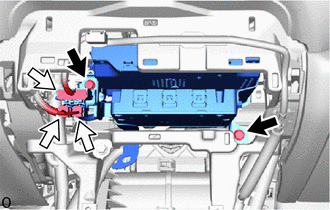

      GTY879073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    4. Install the 2 bolts.

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  9. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 28 [11/2018 - 08/2020] , or refer to PROCEDURE - Step 27 [08/2020 - 10/2022]

  10. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  11. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [11/2018 - 12/2021] , or refer to INSTALLATION [12/2021 - ]
