Removal [11/2018 - 10/2019]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [11/2018 - 12/2021]

  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 14 [11/2018 - 02/2019] , or refer to PROCEDURE - Step 14 [02/2019 - 10/2019]

  4. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Navigation System)
    1. Remove the 2 bolts.

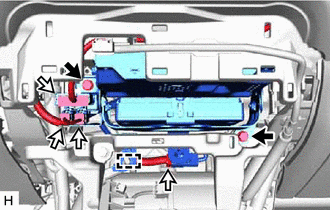

      GTY871560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Disconnect the 4 connectors and detach the clamp.

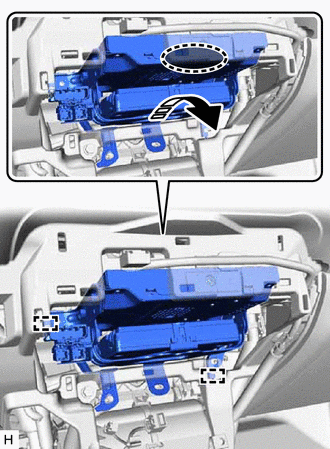

    3. GTY866662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction

      Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, detach the guide and remove the DCM (telematics transceiver) with bracket.

    4. Disconnect the 2 connectors.

      HINT:

      Remove the DCM (telematics transceiver) with bracket together with the No. 2 navigation wire, No. 2 antenna cord sub-assembly and telephone ECU wire (to transceiver).

  5. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/o Navigation System)
    1. for Type A:
      1. Remove the 2 bolts.

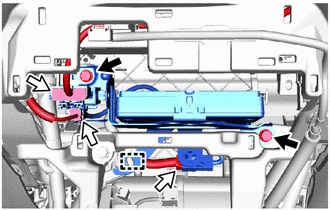

        GTY937036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector
      2. Disconnect the 3 connectors and detach the clamp.

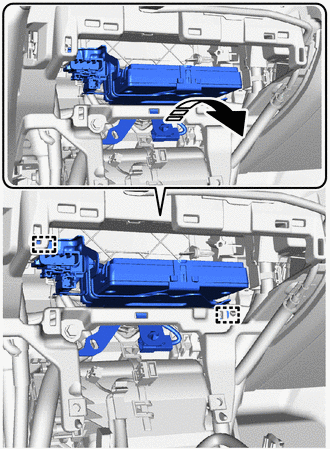

      3. GTY890424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction

        Detach the guide and remove the DCM (telematics transceiver) with bracket.

      4. Disconnect the connector.

        HINT:

        Remove the DCM (telematics transceiver) with bracket together with the No. 2 antenna cord sub-assembly and telephone ECU wire (to transceiver).

    2. for Type B:
      1. Remove the 2 bolts.

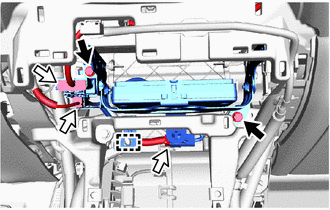

        GTY917676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector
      2. Disconnect the 3 connectors and detach the clamp.

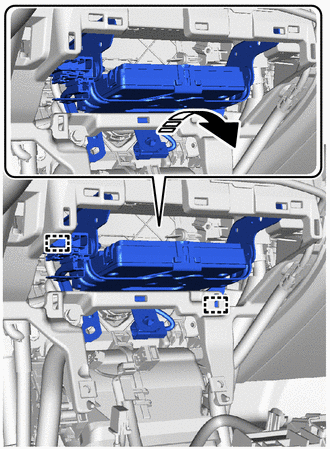

      3. GTY847666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction

        Detach the guide and remove the DCM (telematics transceiver) with bracket.

      4. Disconnect the connector.

        HINT:

        Remove the DCM (telematics transceiver) with bracket together with the No. 2 antenna cord sub-assembly and telephone ECU wire (to transceiver).

  6. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. w/ Navigation System:
      1. Disconnect the 4 connectors.
        GTY918413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the clamp and remove the No. 2 antenna cord sub-assembly.
    2. w/o Navigation System:
      1. for Type A:
        GTY857243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Disconnect the 3 connectors.
        2. Detach the clamp and remove the No. 2 antenna cord sub-assembly.
      2. for Type B:
        GTY857165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Disconnect the 3 connectors.
        2. Detach the clamp and remove the No. 2 antenna cord sub-assembly.
  7. REMOVE NO. 2 NAVIGATION WIRE (w/ Navigation System)
    1. Disconnect the connector.
      GTY918412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and remove the No. 2 navigation wire.
  8. REMOVE TELEPHONE ECU WIRE (TO TRANSCEIVER)
    1. w/ Navigation System:
      1. Disconnect the 2 connectors.
        GTY943879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the clamp and remove the telephone ECU wire (to transceiver).
    2. w/o Navigation System:
      1. for Type A:
        GTY857254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Disconnect the connector.
        2. Detach the clamp and remove the telephone ECU wire (to transceiver).
      2. for Type B:
        GTY857164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Disconnect the connector.
        2. Detach the clamp and remove the telephone ECU wire (to transceiver).
  9. REMOVE NO. 1 MULTI-MEDIA MODULE BRACKET
    1. w/ Navigation System:
      1. Remove the 3 screws and No. 1 multi-media module bracket.
        GTY930379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Navigation System, for Type B:
      1. Remove the screw and No. 1 multi-media module bracket.
        GTY857167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 MULTI-MEDIA MODULE BRACKET
    1. w/ Navigation System:
      1. Remove the 3 screws and No. 2 multi-media module bracket.
        GTY857250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Navigation System, for Type B:
      1. Remove the screw and No. 2 multi-media module bracket.
        GTY857166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE DCM (TELEMATICS TRANSCEIVER)
