Removal [10/2019 - 10/2022]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [11/2018 - 12/2021] , or refer to REMOVAL [12/2021 - ]

  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 14 [10/2019 - 08/2020] , or refer to PROCEDURE - Step 15 [08/2020 - 12/2021] , or refer to PROCEDURE - Step 15 [12/2021 - 10/2022]

  4. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Navigation System)

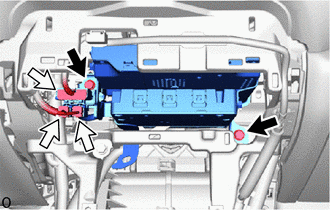

    1. Remove the 2 bolts.
      GTY879076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Disconnect the 3 connectors.

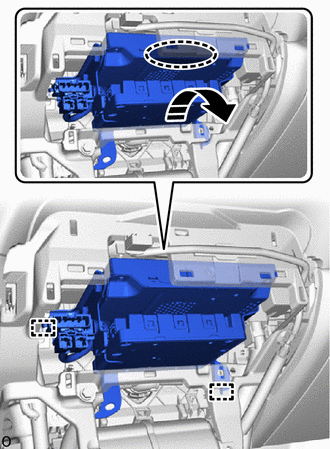

    3. GTY881690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, detach the guide and remove the DCM (telematics transceiver) with bracket.

    4. Disconnect the 3 connectors.

      HINT:

      Remove the DCM (telematics transceiver) with bracket together with the No. 2 navigation wire, No. 2 antenna cord sub-assembly and telephone ECU wire (to transceiver).

  5. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/o Navigation System)
    1. Remove the 2 bolts.
      GTY936746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Disconnect the 2 connectors.
    3. Detach the guide and remove the DCM (telematics transceiver) with bracket.
      GTY891812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Disconnect the connector.

      HINT:

      Remove the DCM (telematics transceiver) with bracket together with the No. 2 antenna cord sub-assembly and telephone ECU wire.

  6. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. w/ Navigation System:
      1. Disconnect the 4 connectors.
        GTY860916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Detach the clamp and remove the No. 2 antenna cord sub-assembly.
    2. w/o Navigation System:
      1. Disconnect the 3 connectors.
      2. Detach the clamp and remove the No. 2 antenna cord sub-assembly.
        GTY860912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 NAVIGATION WIRE (w/ Navigation System)
    1. Disconnect the connector.
      GTY860913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and remove the No. 2 navigation wire.
  8. REMOVE TELEPHONE ECU WIRE (TO TRANSCEIVER) (w/ Navigation System)
    1. Disconnect the 2 connectors and remove the telephone ECU wire (to transceiver).
      GTY860917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE TELEPHONE ECU WIRE (w/o Navigation System)
    1. Disconnect the connector.
      GTY860925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and remove the telephone ECU wire.
  10. REMOVE NO. 1 MULTI-MEDIA MODULE BRACKET
    1. w/ Navigation System:
      1. Remove the 3 screws and No. 1 multi-media module bracket.
        GTY860930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Navigation System:
      1. Remove the screw and No. 1 multi-media module bracket.
        GTY860931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 MULTI-MEDIA MODULE BRACKET
    1. w/ Navigation System:
      1. Remove the 4 screws and No. 2 multi-media module bracket.
        GTY931196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Navigation System:
      1. Remove the 2 screws and No. 2 multi-media module bracket.
        GTY860934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE DCM (TELEMATICS TRANSCEIVER)
