Installation [11/2018 - 10/2019]: Procedure

  1. INSTALL DCM (TELEMATICS TRANSCEIVER)
  2. INSTALL NO. 2 MULTI-MEDIA MODULE BRACKET
    1. w/ Navigation System:
      1. Install the No. 2 multi-media module bracket with the 3 screws.
        GTY857250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

    2. w/o Navigation System, for Type B:
      1. Install the No. 2 multi-media module bracket with the screw.
        GTY857166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

  3. INSTALL NO. 1 MULTI-MEDIA MODULE BRACKET
    1. w/ Navigation System:
      1. Install the No. 1 multi-media module bracket with the 3 screws.
        GTY930379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

    2. w/o Navigation System, for Type B:
      1. Install the No. 1 multi-media module bracket with the screw.
        GTY857167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

  4. INSTALL TELEPHONE ECU WIRE (TO TRANSCEIVER)
    1. w/ Navigation System:
      1. Attach the clamp to install the telephone ECU wire (to transceiver).
        GTY943879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the 2 connectors.
    2. w/o Navigation System:
      1. for Type A:
        1. Attach the clamp to install the telephone ECU wire (to transceiver).
        2. Connect the connector.

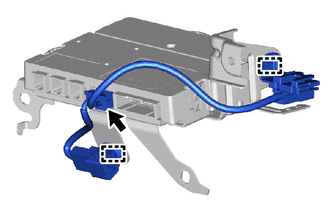

        GTY857254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Type B:
        1. Attach the clamp to install the telephone ECU wire (to transceiver).
        2. Connect the connector.

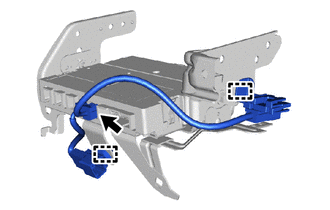

        GTY857164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 2 NAVIGATION WIRE (w/ Navigation System)
    1. Attach the clamp to install the No. 2 navigation wire.
      GTY918412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  6. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. w/ Navigation System:
      GTY918413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Attach the clamp to install the No. 2 antenna cord sub-assembly.
      2. Connect the 4 connectors.
    2. w/o Navigation System:
      1. for Type A:
        1. Attach the clamp to install the No. 2 antenna cord sub-assembly.
        2. Connect the 3 connectors.

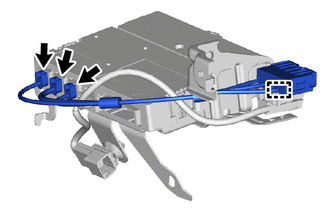

        GTY857243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. for Type B:
        1. Attach the clamp to install the No. 2 antenna cord sub-assembly.
        2. Connect the 3 connectors.

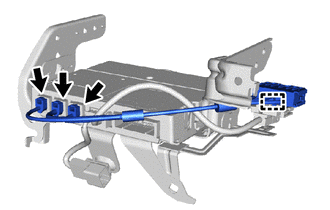

        GTY857165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/ Navigation System)
    1. Connect the 2 connectors.
    2. Place your hand at the position shown in the illustration, and then while bending the instrument panel safety pad assembly, attach the guide to temporarily install the DCM (telematics transceiver) with bracket.

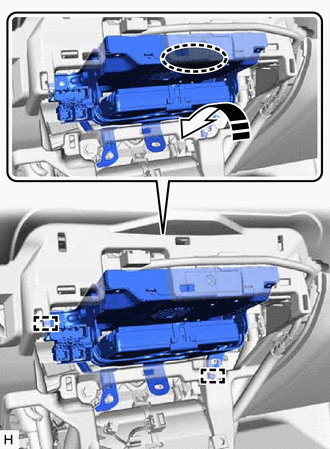

      GTY887506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Install in this Direction
    3. Attach the clamp and connect the 4 connectors.

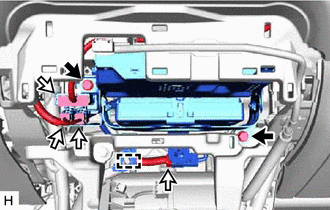

      GTY871559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    4. Install the 2 bolts.

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  8. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET (w/o Navigation System)
    1. for Type A:
      1. Connect the connector.
      2. Attach the guide to temporarily install the DCM (telematics transceiver) with bracket.

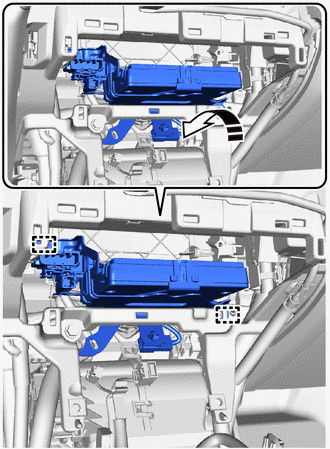

        GTY885461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
      3. Attach the clamp and connect the 3 connectors.

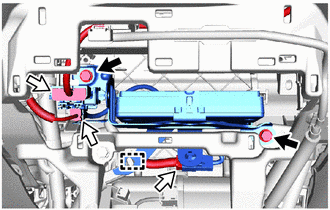

        GTY887428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector
      4. Install the 2 bolts.

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

    2. for Type B:
      1. Connect the connector.
      2. Attach the guide to temporarily install the DCM (telematics transceiver) with bracket.

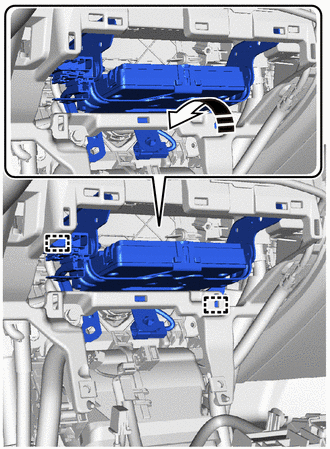

        GTY840096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
      3. Attach the clamp and connect the 3 connectors.

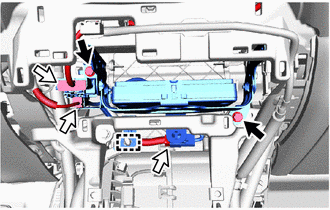

        GTY917674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Bolt
        Connector
      4. Install the 2 bolts.

        Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

  9. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 28

  10. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 1

  11. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [11/2018 - 12/2021]

  12. PERFORM DCM ACTIVATION

    HINT:

    After replacing the DCM (telematics transceiver), make sure to perform DCM activation.

    Refer to DCM ACTIVATION [11/2018 - 10/2019]

  13. PERFORM REGISTRATION (w/ Smart Key System)
    1. for Toyota Entune Remote Connect Compatible Type:

      HINT:

      After replacing the DCM (telematics transceiver), make sure to perform code registration (Smart key System (for Start Function)).
