Speed Signal Circuit [10/2022 - ]: Wiring Diagram

For HV Model:

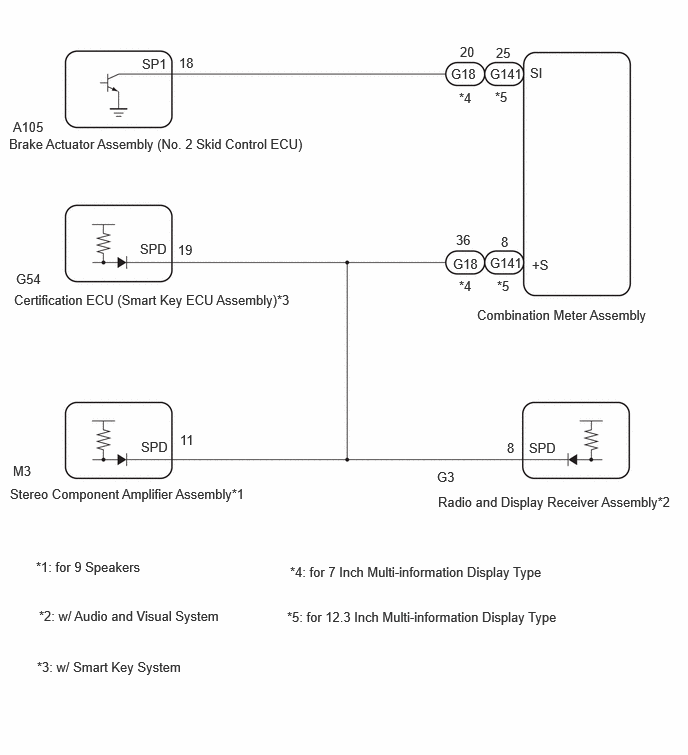

Fig 1: For HV Model: [10/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For Gasoline Model:

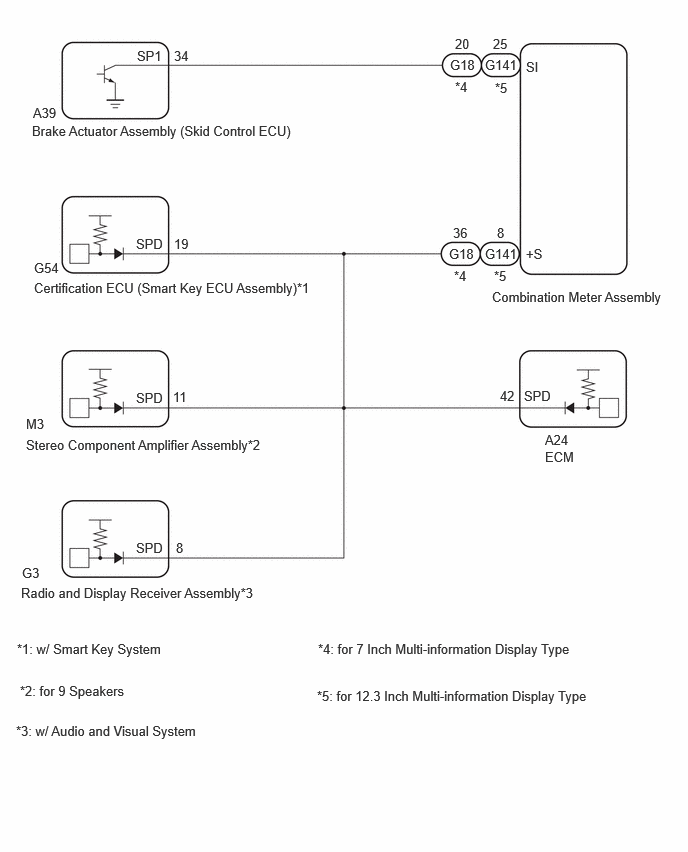

Fig 2: For Gasoline Model: [10/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
