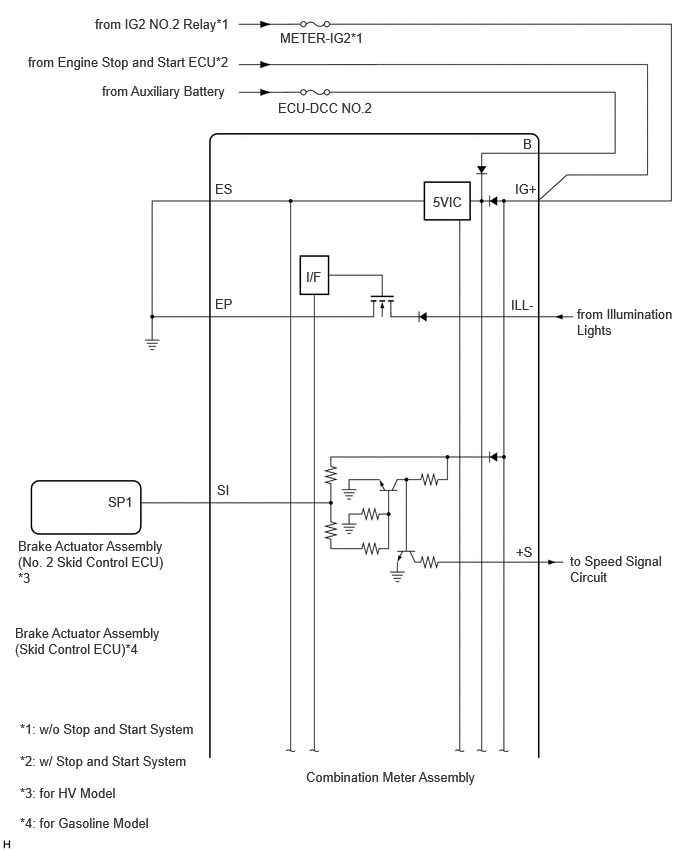

System Diagram [12/2021 - 10/2022]

HINT:

Inspect the communication function by CAN communication system.

1. for HV Model:

   Refer to SYSTEM DIAGRAM [12/2021 - ]

2. for Gasoline Model:

   Refer to SYSTEM DIAGRAM [12/2021 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

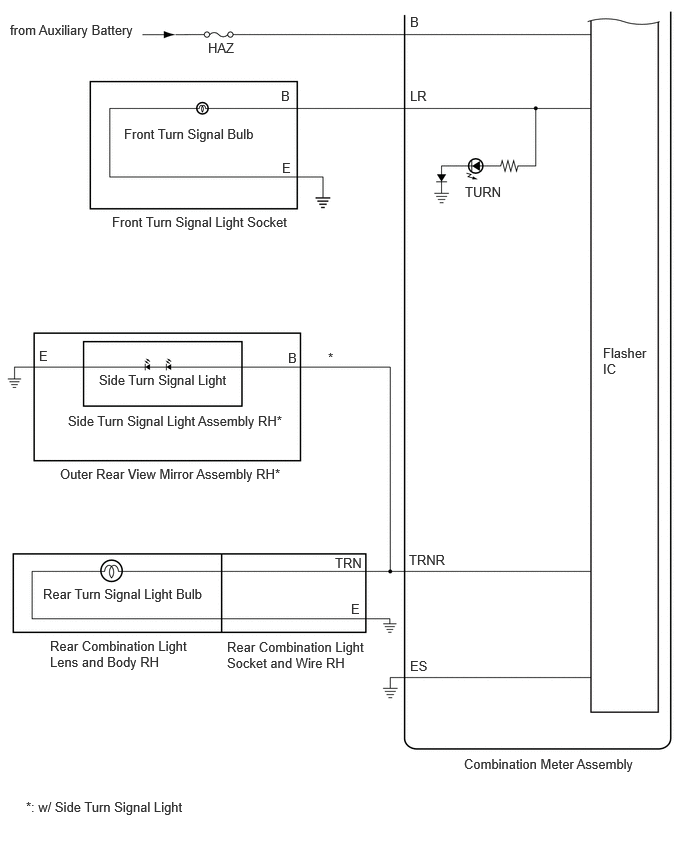

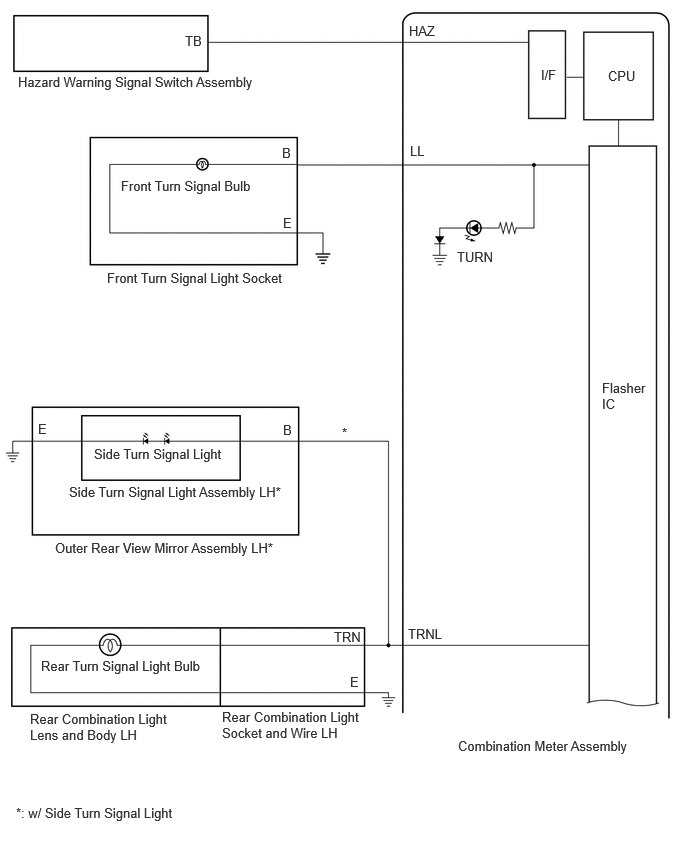

1. Turn Signal Light Circuit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
