Removal [02/2019 - 10/2019]: Procedure
- REMOVE DECK BOARD ASSEMBLY (for HV Model)
Refer to PROCEDURE - Step 2
- REMOVE REAR NO. 2 FLOOR BOARD (for HV Model)
Refer to PROCEDURE - Step 3
- REMOVE BATTERY HOLE COVER (for HV Model)
Refer to PROCEDURE - Step 4
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
- for A25A-FKS:
Refer to PROCEDURE - Step 2
- for A25A-FXS:
Refer to PROCEDURE - Step 5
WARNING:- Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [02/2019 - 10/2019]
- for A25A-FKS:
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [11/2018 - 12/2021]
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure described for the LH side.
Refer to PROCEDURE - Step 24
- REMOVE COWL SIDE TRIM BOARD RH
Refer to PROCEDURE - Step 30
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 31
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 32
- REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 33
- REMOVE ECU INTEGRATION BOX RH
- w/ Clearance Warning System:

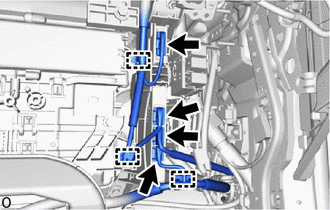

- Disconnect the connector.

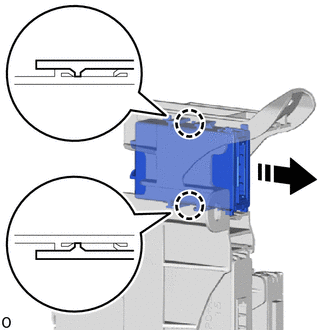

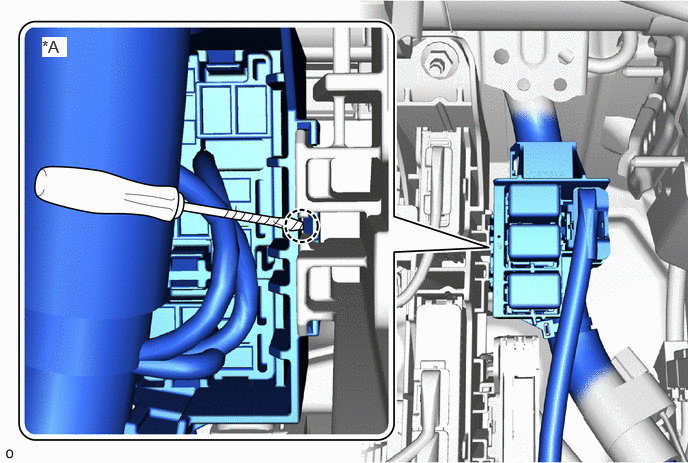

- Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and relay holder.
*A Relay holder reverse side - - Protective Tape - - - Disconnect the 4 connectors.

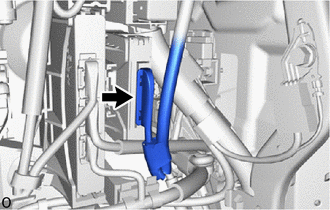

- Detach the 3 wire harness clamps.

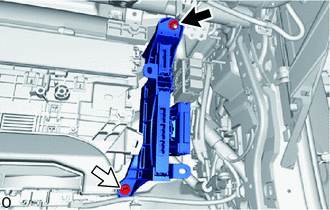

- Remove the nut, bolt and ECU integration box RH.
Nut Bolt
- w/ Clearance Warning System:
- REMOVE NETWORK GATEWAY ECU
