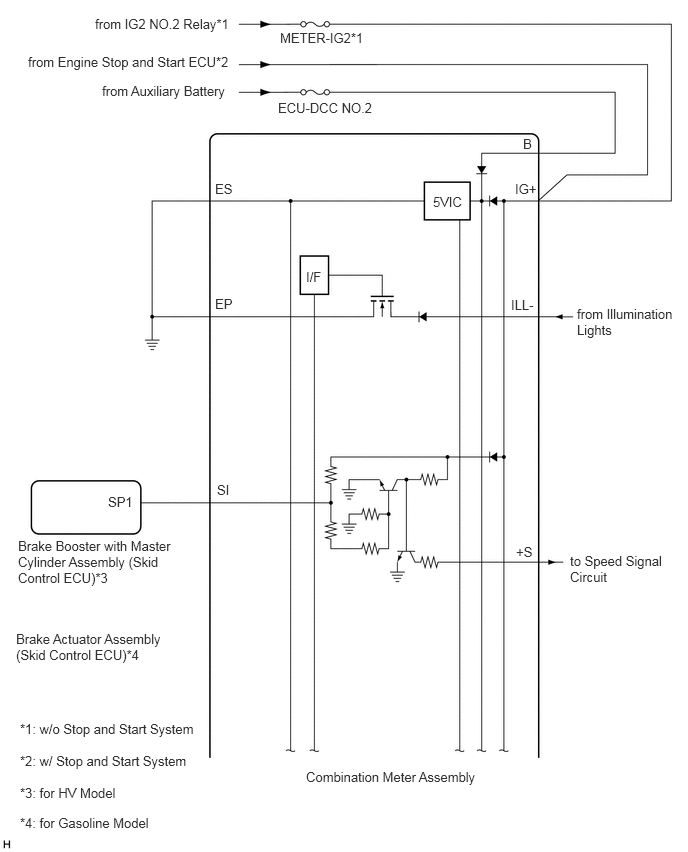

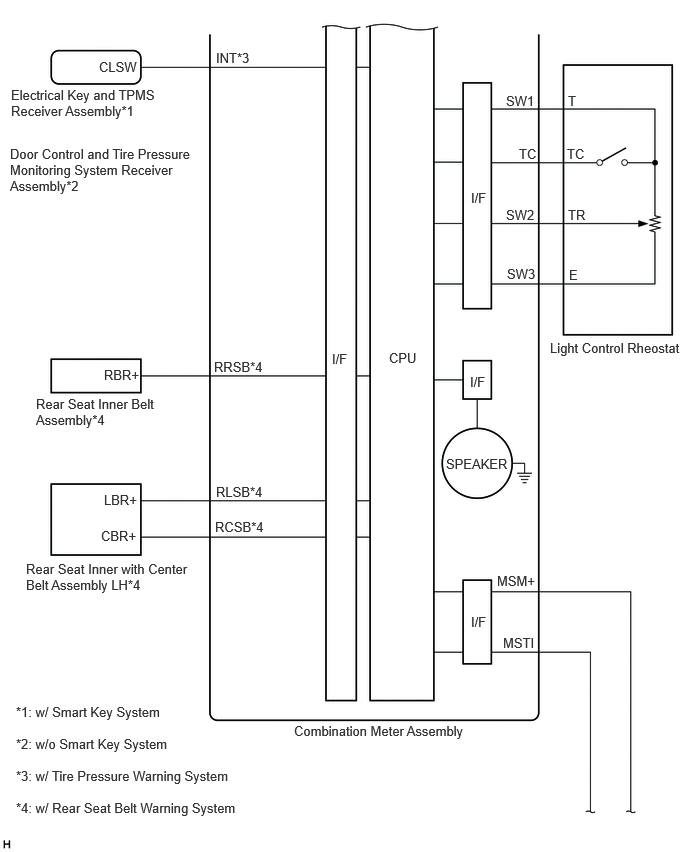

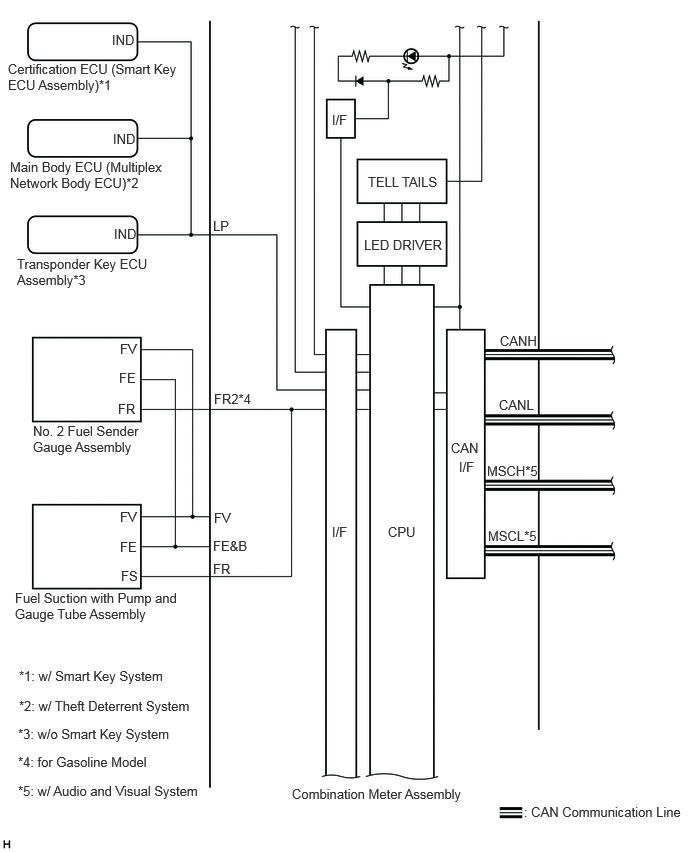

System Diagram [08/2020 - 12/2021]

HINT:

Inspect the communication function by CAN communication system.

1. for HV Model:

   Refer to SYSTEM DIAGRAM [08/2020 - 12/2021]

2. for Gasoline Model:

   Refer to SYSTEM DIAGRAM [08/2020 - 12/2021]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

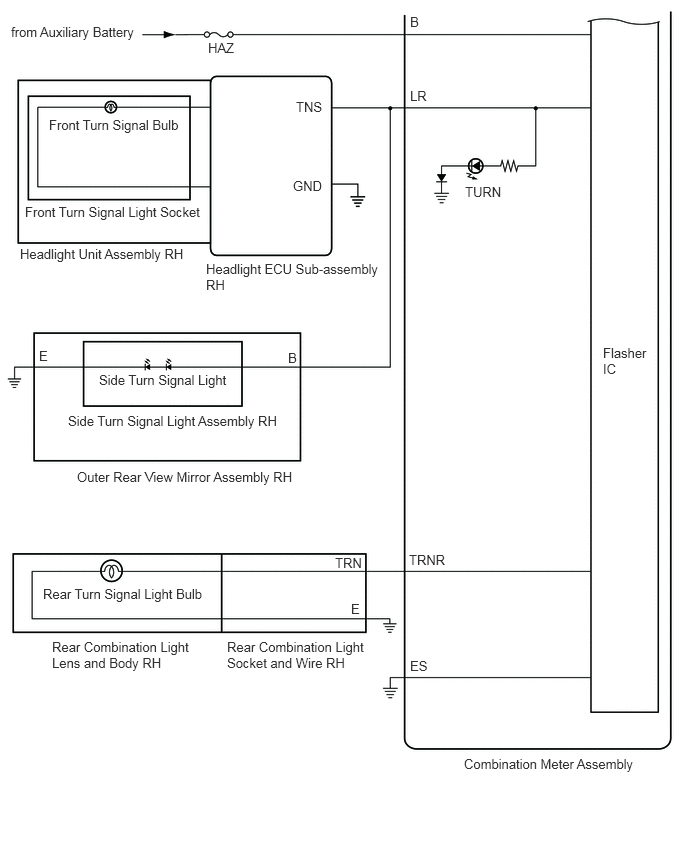

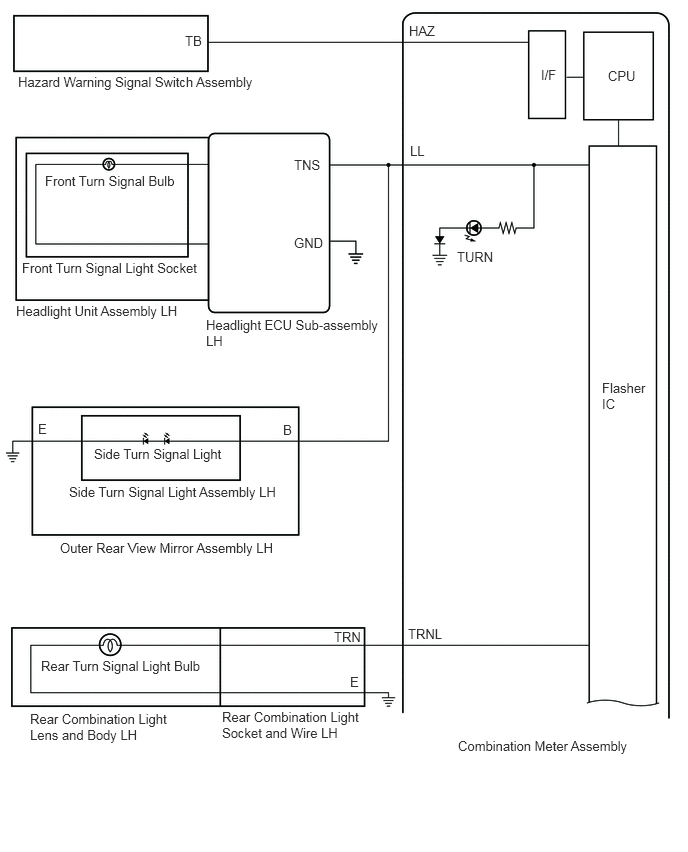

1. Turn Signal Light Circuit (w/ Headlight ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

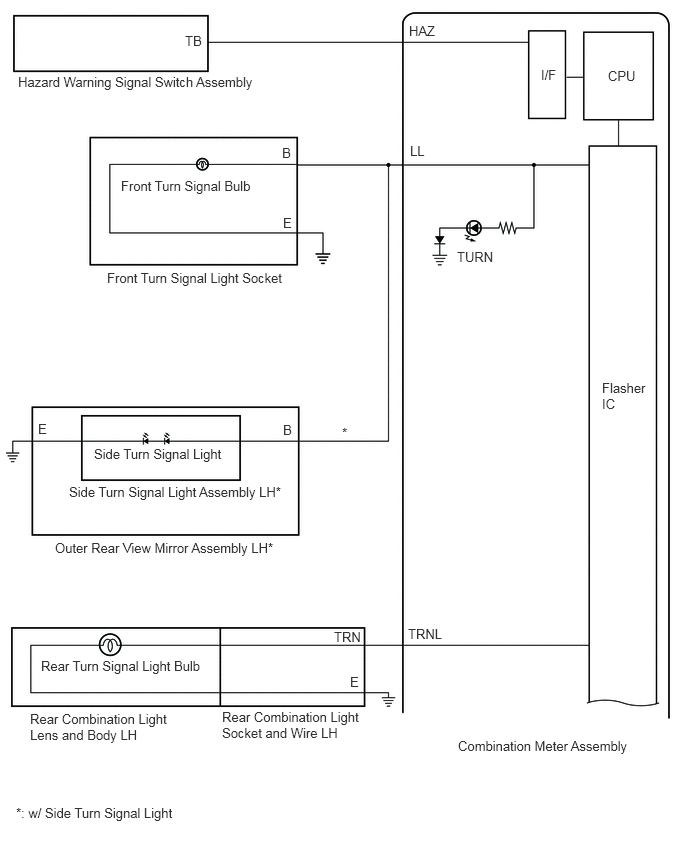

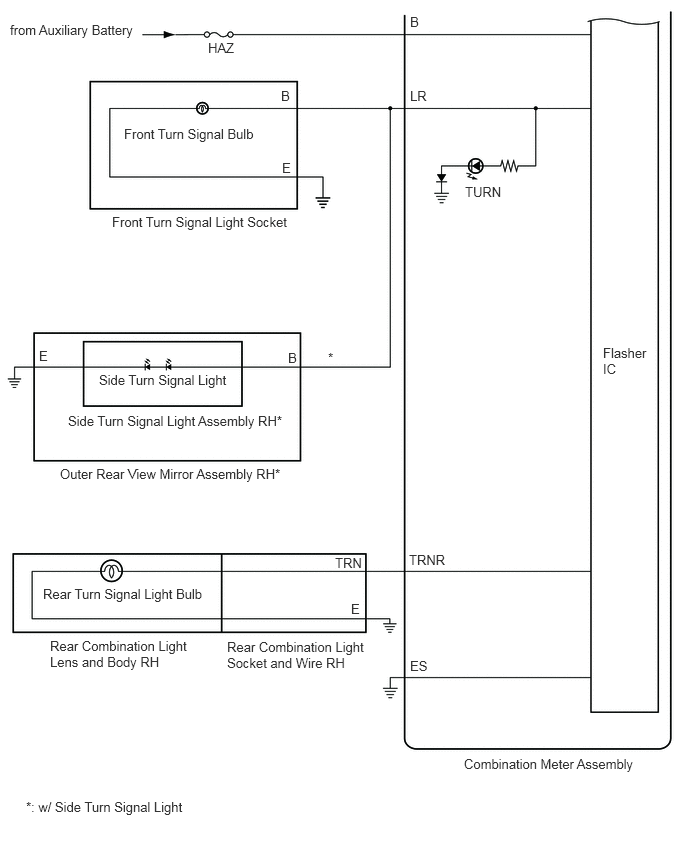

2. Turn Signal Light Circuit (w/o Headlight ECU)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
