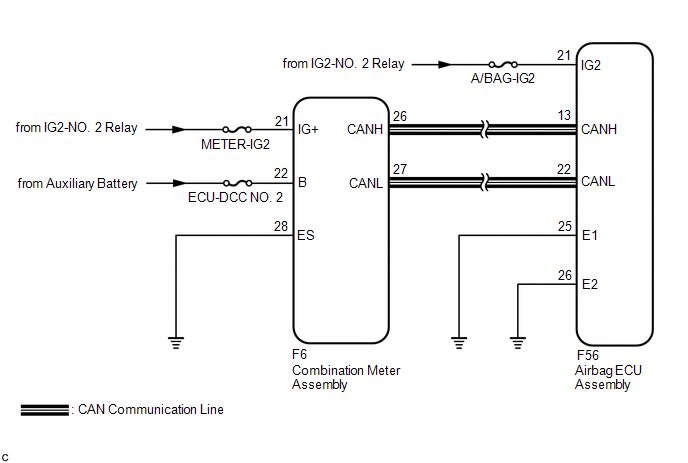

SRS Warning Light does not Come ON [11/2015 - 12/2018]: Wiring Diagram

GTY558839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
