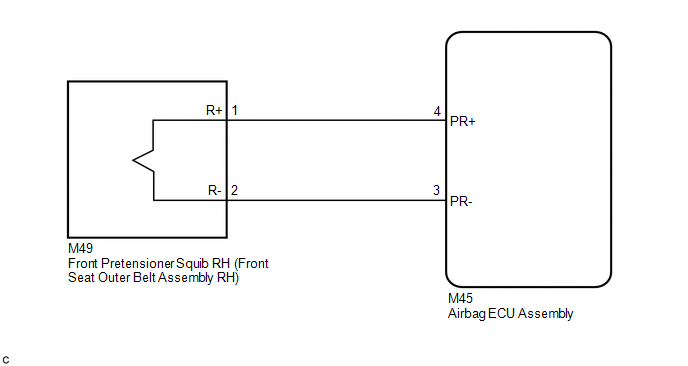

DTC B1900: Short in P/T Squib (RH) Circuit; DTC B1901: Open in P/T Squib (RH) Circuit; DTC B1902: Short in P/T Squib (RH) Circuit (to Ground); DTC B1903: Short in P/T Squib (RH) Circuit (to +B) [12/2018 - 08/2019]: Wiring Diagram

GTY570865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
