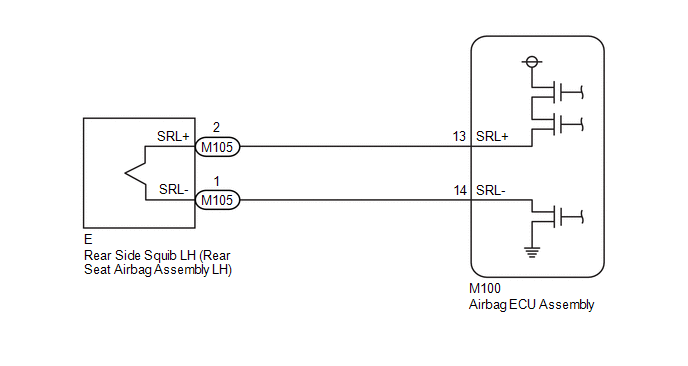

DTC B1855: Short in Rear Side Squib LH Circuit; DTC B1856: Open in Rear Side Squib LH Circuit; DTC B1857: Short to GND in Rear Side Squib LH Circuit; DTC B1858: Short to B+ in Rear Side Squib LH Circuit [07/2020 - ]: Wiring Diagram

GTY1014504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
