Section 359 (Garage Door Opener (Inspection & Registration) (Hybrid))
>>
GARAGE DOOR OPENER SYSTEM (for HV Model)
>>

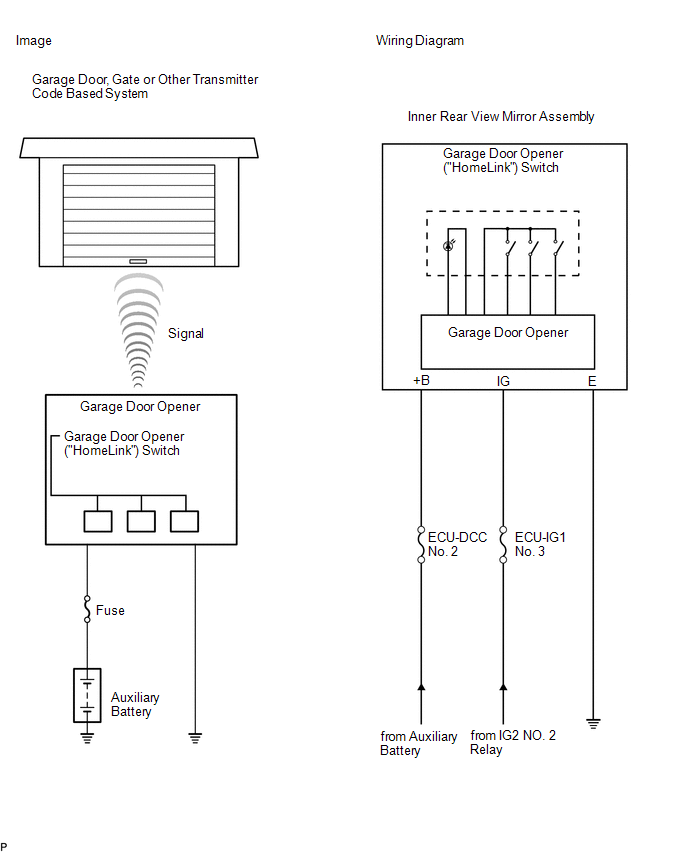

System Diagram [04/2018 - ]
>>
System Diagram [04/2018 - ]
System Diagram [04/2018 - ]
WARNING:
This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
