Removal [11/2015 - 12/2018]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to PRECAUTION [11/2015 - 11/2017] , or refer to PRECAUTION [11/2017 - 12/2018]
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 2
REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 14
REMOVE COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 15
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 9 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 9 [11/2017 - 12/2018]
REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 5 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 5 [11/2017 - 12/2018]
REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
Refer to PROCEDURE - Step 6 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 6 [11/2017 - 12/2018]
DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 10 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 10 [11/2017 - 12/2018]
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 11 [11/2015 - 11/2017] , or refer to PROCEDURE - Step 11 [11/2017 - 12/2018]

REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY

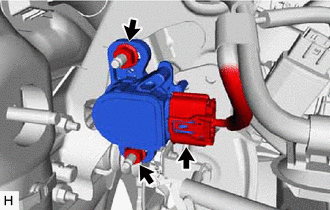

Disconnect the connector from the brake pedal stroke sensor assembly.

Remove the 2 nuts and brake pedal stroke sensor assembly from the brake pedal support assembly.
NOTE:
- Do not drop the brake pedal stroke sensor assembly.
- If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.
