Installation [11/2015 - ]: Procedure

1. Install the brake pedal pad from the brake pedal support assembly.

1. Install the nut to the brake pedal support assembly.

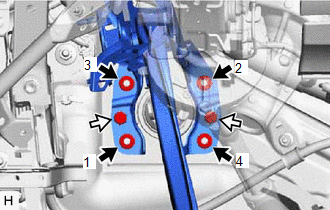

2. Temporarily install the brake pedal support assembly with 2 new clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Nut
   	Clip

3. Install the 4 nuts.

   Torque: 12.7 N.m (130 kgf.cm, 9 ft./lbf)

   NOTE:

   Tighten the nuts in the order shown in the illustration.

4. Install the brake pedal support assembly to the instrument panel reinforcement assembly with the bolt.

   Torque: 23.6 N.m (241 kgf.cm, 17 ft./lbf)

5. Engage the clamp to install the wire harness to the brake pedal support assembly.

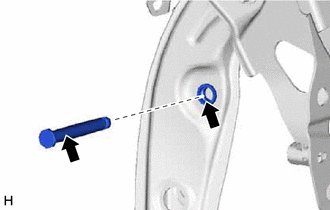

1. Apply lithium soap base glycol grease to the push rod pin and installation hole of the brake pedal support assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lithium soap base glycol grease

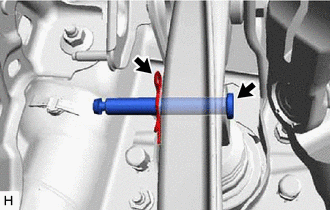

2. Connect the brake master cylinder push rod clevis to the brake pedal support assembly with the push rod pin, and install a new clip as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be sure to install the push rod pin in the correct direction.

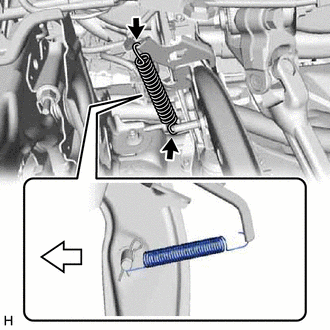

1. Install the brake pedal return spring to the brake pedal support assembly and push rod pin as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Front

Refer to PROCEDURE - Step 1

Refer to PROCEDURE - Step 2

Refer to INSTALLATION [11/2015 - 11/2017] , or refer to INSTALLATION [11/2017 - 08/2019] , or refer to INSTALLATION [08/2019 - ]

Refer to ADJUSTMENT [11/2015 - 12/2018] , or refer to ADJUSTMENT [12/2018 - ]
