Components [11/2015 - ]

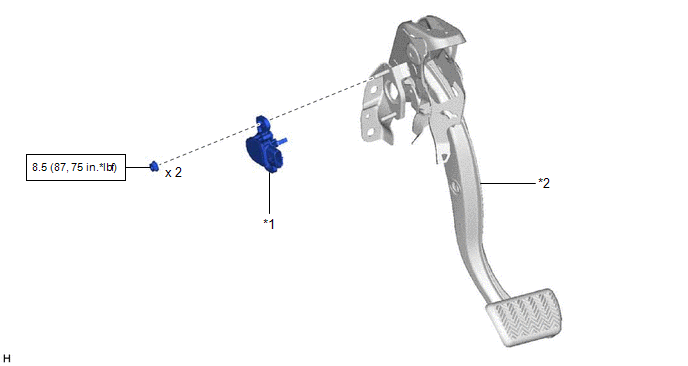

Fig 1: Brake Pedal Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE PEDAL STROKE SENSOR ASSEMBLY	*2	BRAKE PEDAL SUPPORT ASSEMBLY
	N.m (kgf.cm, ft./lbf): Specified torque	-	-

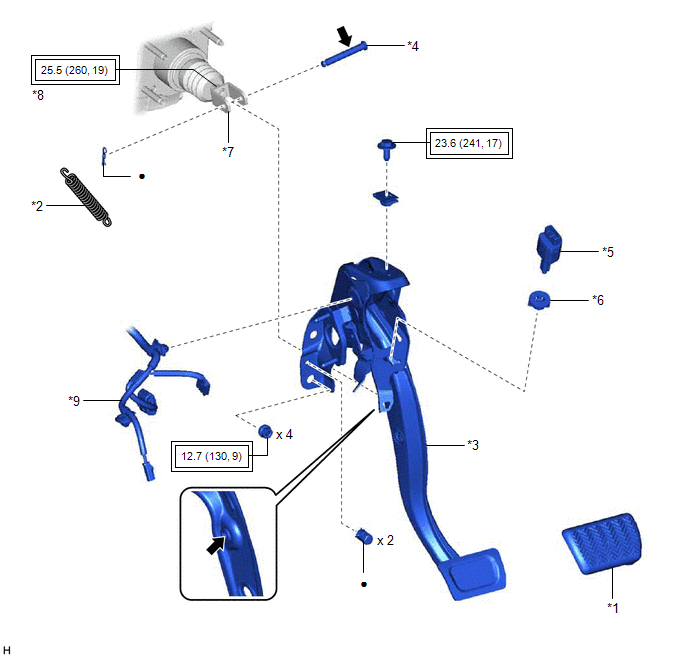

Fig 2: Brake Pedal Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	BRAKE PEDAL PAD	*2	BRAKE PEDAL RETURN SPRING
*3	BRAKE PEDAL SUPPORT ASSEMBLY	*4	PUSH ROD PIN
*5	STOP LIGHT SWITCH ASSEMBLY	*6	STOP LIGHT SWITCH MOUNTING ADJUSTER
*7	BRAKE MASTER CYLINDER PUSH ROD CLEVIS	*8	LOCK NUT
*9	WIRE HARNESS	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf)	•	Non-reusable part
	Lithium soap base glycol grease	-	-
