On-Vehicle Inspection [11/2015 - ]: Procedure

  1. INSPECT AND ADJUST FLUID LEVEL IN RESERVOIR (When Using the Techstream)
    1. Connect the Techstream to the DLC3 with the power switch off.
    2. Check that park (P) is selected and the parking brake is applied, and turn the power switch on (IG).
    3. Turn the Techstream on and enter the following menus: Chassis / ABS/VSC/TRAC / Utility / ECB (Electronically Controlled Brake system) Utility / Zero Down.

      Chassis > ABS/VSC/TRAC > Utility

      Tester Display
      ECB Utility
    4. Select "Next" and wait for 10 seconds.
    5. After the booster pump stopped, inspect the fluid level is between the MAX and MIN lines. If necessary, add the brake fluid up to the MAX line.
      GTY565539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a MAX Line
      *b MIN Line

      Brake Fluid

      SAE J1703 or FMVSS No. 116 DOT3

      SAE J1704 or FMVSS No. 116 DOT4

  2. INSPECT AND ADJUST FLUID LEVEL IN RESERVOIR (When Not Using the Techstream)
    1. Inspect the fluid level is above the MIN line with the power switch on (IG). If necessary, add the brake fluid up to the fluid level support line with the power switch on (IG).

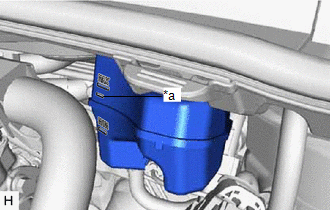

      GTY565538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fluid Level Support Line

      Brake Fluid

      SAE J1703 or FMVSS No. 116 DOT3

      SAE J1704 or FMVSS No. 116 DOT4
