Components [11/2015 - ]

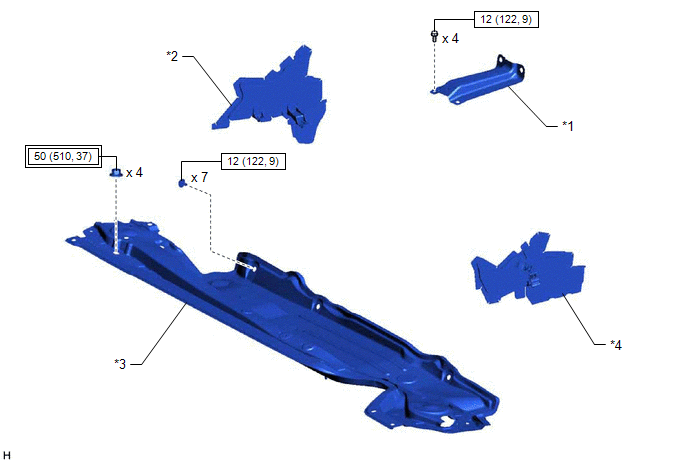

Fig 1: Brake Booster Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL BODY MOUNTING REINFORCEMENT LH	*2	NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL
*3	OUTER COWL TOP PANEL SUB-ASSEMBLY	*4	WATER GUARD PLATE LH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf)		N.m (kgf.cm, ft./lbf): Specified torque

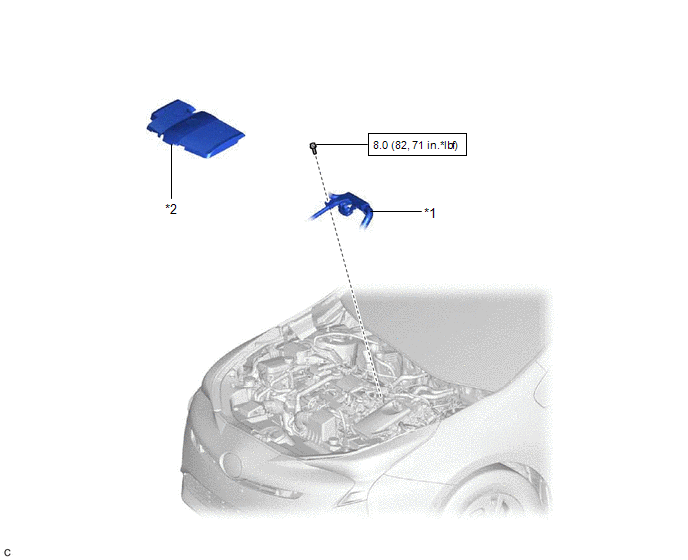

Fig 2: Brake Booster Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE WIRE	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
	N.m (kgf.cm, ft./lbf): Specified torque	-	-

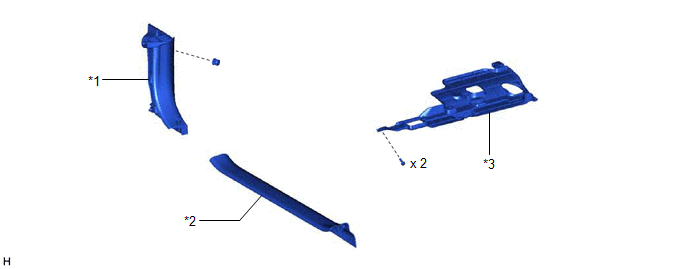

Fig 3: Brake Booster Replacement Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL SIDE TRIM BOARD LH	*2	FRONT DOOR SCUFF PLATE LH
*3	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	-	-

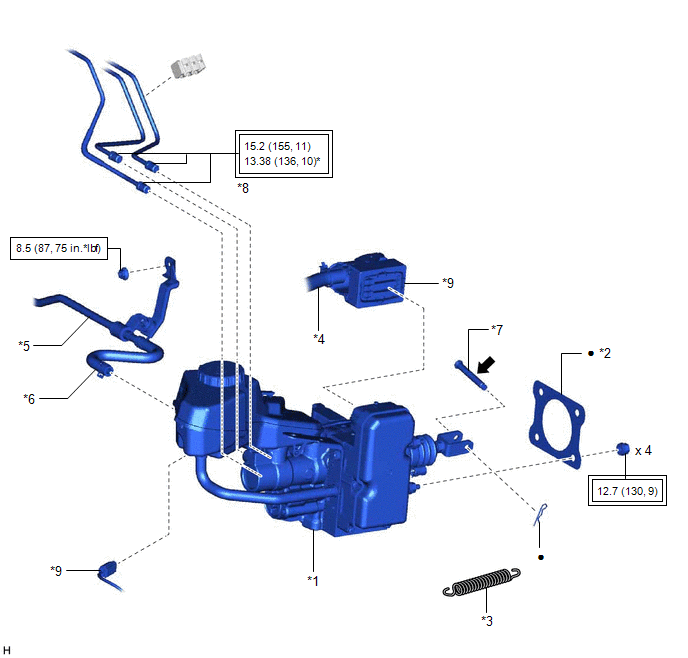

Fig 4: Brake Booster Replacement Components With Torque Specifications (4 Of 4)

Callout	Description	Callout	Description
*1	BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY	*2	BRAKE MASTER CYLINDER GASKET
*3	BRAKE PEDAL RETURN SPRING	*4	ENGINE ROOM MAIN WIRE
*5	NO. 1 BRAKE ACTUATOR TUBE	*6	NO. 2 BRAKE ACTUATOR HOSE
*7	PUSH ROD PIN	*8	BRAKE LINE
*9	CONNECTOR	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf)		N.m (kgf.cm, ft./lbf): Specified torque
*	For use with a union nut wrench	•	Non-reusable part
	Lithium soap base glycol grease	-	-
