Removal [11/2015 - 12/2018]: Procedure

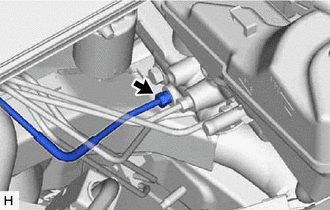

SEPARATE NO. 1 BRAKE ACTUATOR TUBE

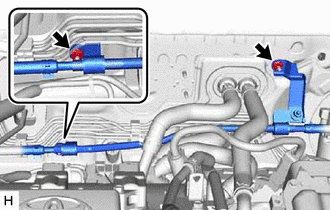

Remove the 2 nuts and separate the No. 1 brake actuator tube.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE ACCUMULATOR TO BRAKE MASTER CYLINDER TUBE

Using a union nut wrench, disconnect the accumulator to brake master cylinder tube from the brake booster with master cylinder assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the claw to separate the clamp cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Clamp Cover

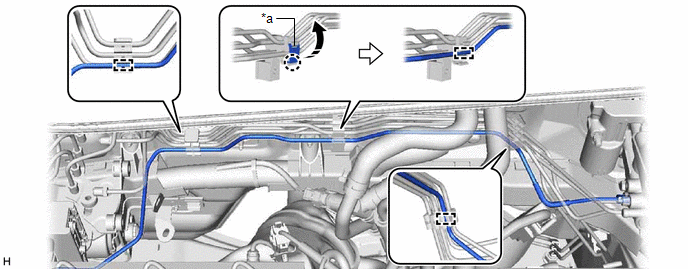

Disengage the 3 clamps and remove the accumulator to brake master cylinder tube.

REMOVE BRAKE BOOSTER PUMP ASSEMBLY

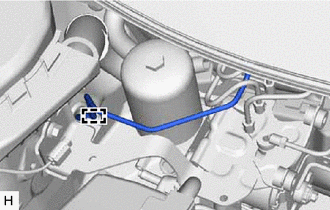

Disengage the clamp to separate the No. 3 front brake tube from the brake actuator bracket assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

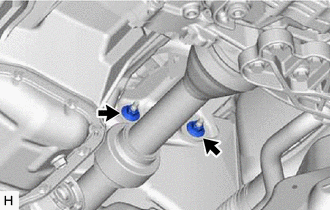

Remove the 2 nuts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

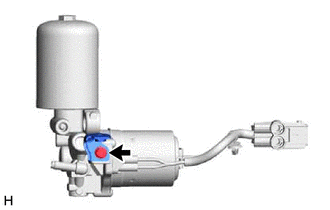

Remove the bolt of the brake actuator bracket assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

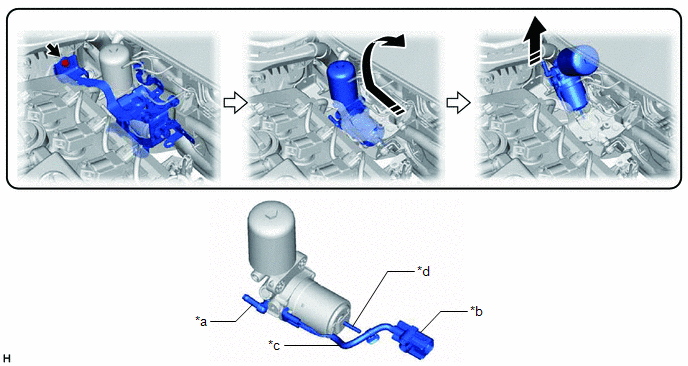

Remove the brake booster pump assembly as shown in the illustration.
NOTE:
- Do not apply excessive force to the brake lines or refrigerant lines.
- Do not carry the brake booster pump assembly by the parts shown in the illustration.
- Do not drop the brake booster pump assembly when carrying it.
- Be careful not to allow brake fluid to enter the connector.
HINT:

Move the brake actuator bracket assembly as necessary to allow the brake booster pump assembly to be removed.
Remove the brake actuator bracket assembly from the vehicle body.
NOTE:
Do not apply excessive force to the brake lines or refrigerant lines.

Remove the brake actuator case collar and brake booster pump bushing from the brake actuator bracket assembly.

REMOVE NO. 1 BRAKE ACTUATOR HOSE

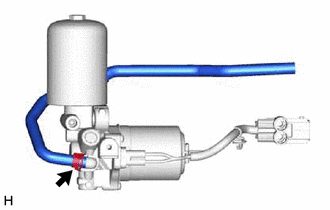

Slide the clip and remove the No. 1 brake actuator hose from the brake booster pump assembly.

REMOVE NO. 1 BRAKE TUBE CLAMP BRACKET

Remove the bolt and No. 1 brake tube clamp bracket from the brake booster pump assembly.
