Components [11/2015 - ]

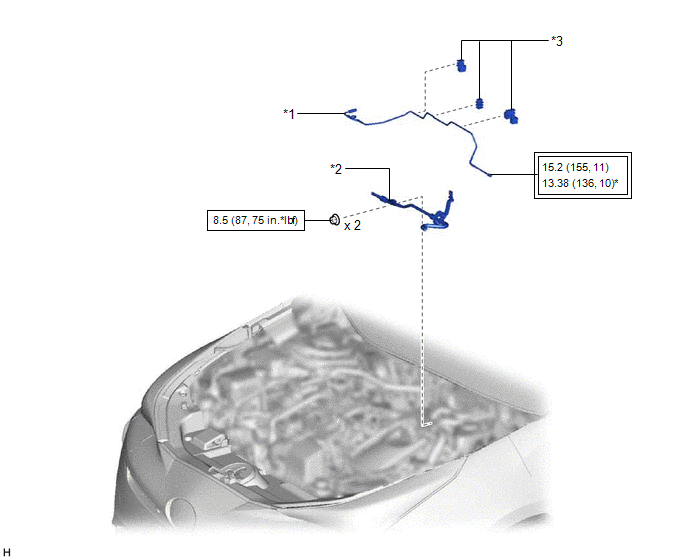

Fig 1: Brake Booster Pump Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ACCUMULATOR TO BRAKE MASTER CYLINDER TUBE	*2	NO. 1 BRAKE ACTUATOR TUBE
*3	CLAMP	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf)		N.m (kgf.cm, ft./lbf): Specified torque
*	For use with a union nut wrench	-	-

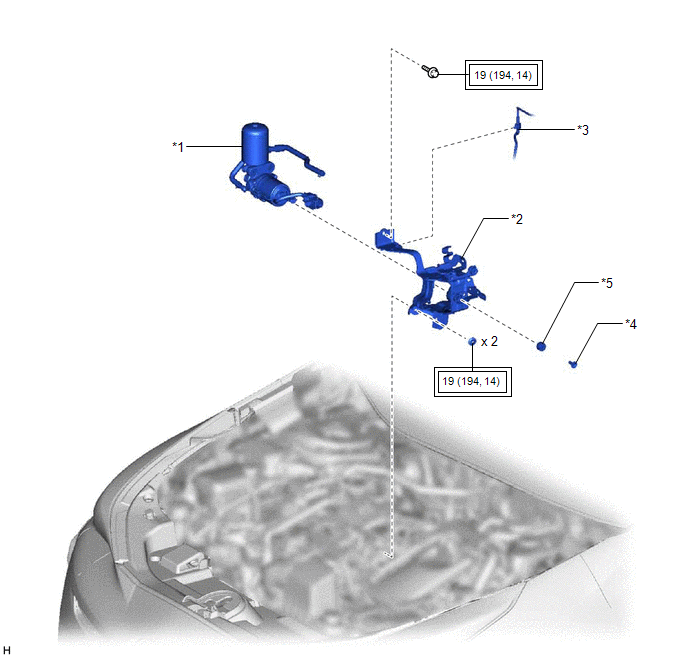

Fig 2: Brake Booster Pump Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE BOOSTER PUMP ASSEMBLY	*2	BRAKE ACTUATOR BRACKET ASSEMBLY
*3	NO. 3 FRONT BRAKE TUBE	*4	BRAKE ACTUATOR CASE COLLAR
*5	BRAKE BOOSTER PUMP BUSHING	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf)	-	-

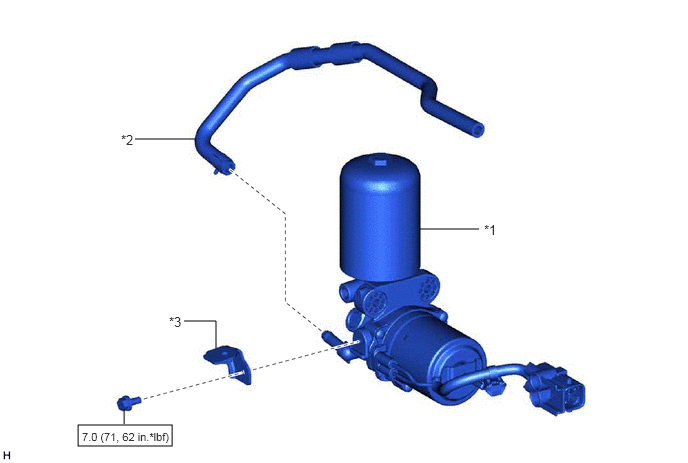

Fig 3: Brake Booster Pump Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	BRAKE BOOSTER PUMP ASSEMBLY	*2	NO. 1 BRAKE ACTUATOR HOSE
*3	NO. 1 BRAKE TUBE CLAMP BRACKET	-	-
	N.m (kgf.cm, ft./lbf): Specified torque	-	-
